Yes. A squirrel cage motor is a type of induction motor. The term induction motor describes how the motor works. The term squirrel cage describes the construction of its rotor. In three-phase induction motors, two common rotor designs are the squirrel cage rotor and the wound rotor. A wound rotor induction motor with slip rings is commonly called a slip ring motor.

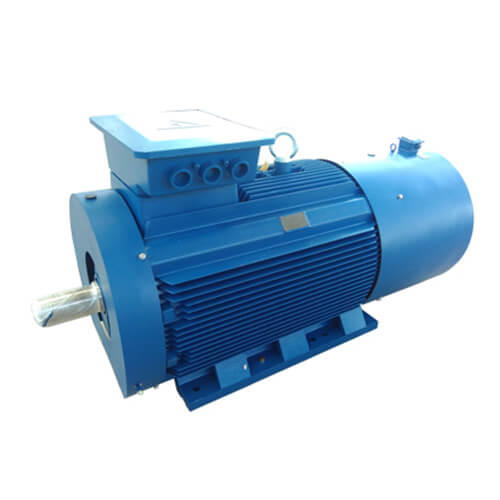

Squirrel Cage Motor
A squirrel cage rotor contains conductive bars set into the rotor core. End rings connect the bars at both ends, forming a closed electrical circuit. Standard squirrel cage designs use no brushes or slip rings to connect the rotor to an external circuit.
A wound rotor contains insulated windings. In a slip ring motor, the windings connect to slip rings mounted on the shaft. Brushes contact the rings and allow an external circuit, such as a starting resistor, to be connected to the rotor.

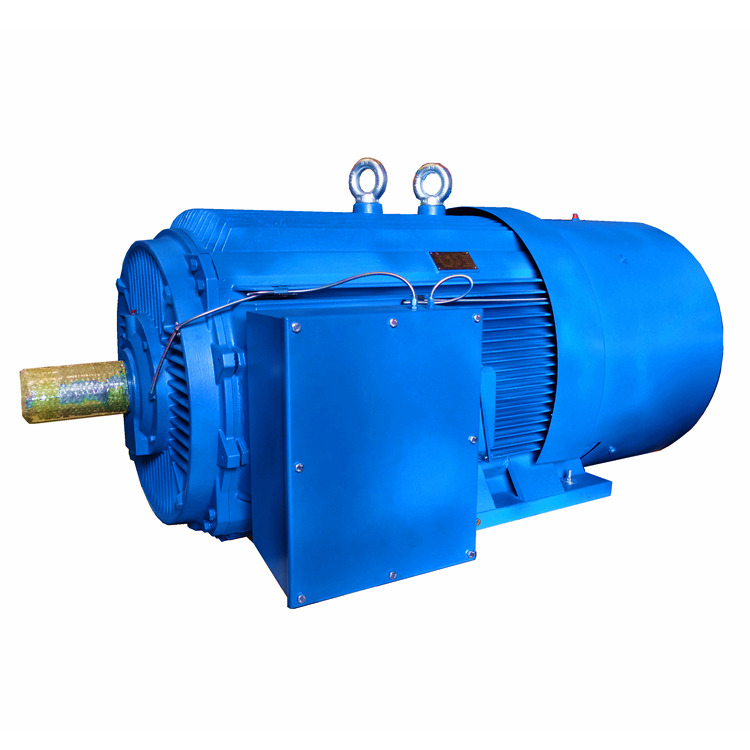

Induction Motor
| Feature | Squirrel cage rotor | Wound rotor in a slip ring motor |
| Conductive components | Rotor bars joined by end rings | Insulated rotor windings |
| Rotor circuit | Closed within the rotor by the bars and end rings | Accessible through slip rings and brushes |
| Parts that identify the design | Rotor bars and end rings | Rotor windings, slip rings, brushes and brush holders |
| Operating principle | The stator’s rotating magnetic field induces current in the rotor | The stator’s rotating magnetic field induces current in the rotor |
During normal motoring operation, the rotor turns slightly slower than the stator’s rotating magnetic field. The difference between these speeds, expressed as a percentage of synchronous speed, is called slip. This difference allows the magnetic field to induce current in the rotor and produce torque.
Both squirrel cage and wound rotor induction motors operate with slip. The amount varies with the load and motor design.
Check the motor model, nameplate and drawings for references to rotor terminals, slip rings or brushes. The manufacturer’s documentation can help confirm the rotor design when the nameplate alone gives limited information.
If you are comparing motor configurations for a new machine or a replacement project, see our industrial motor selection guide. It covers how operating duty, controls and installation requirements affect the choice.
