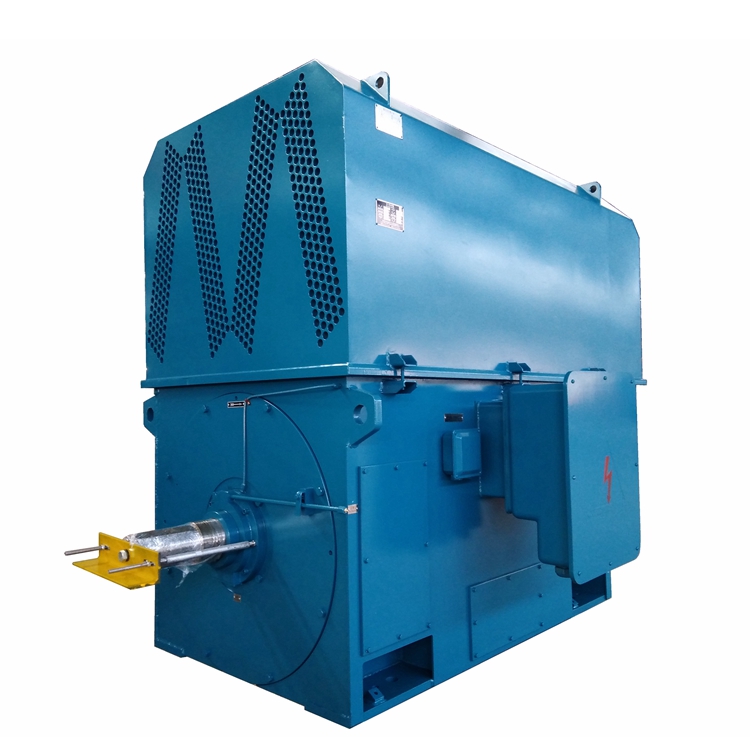

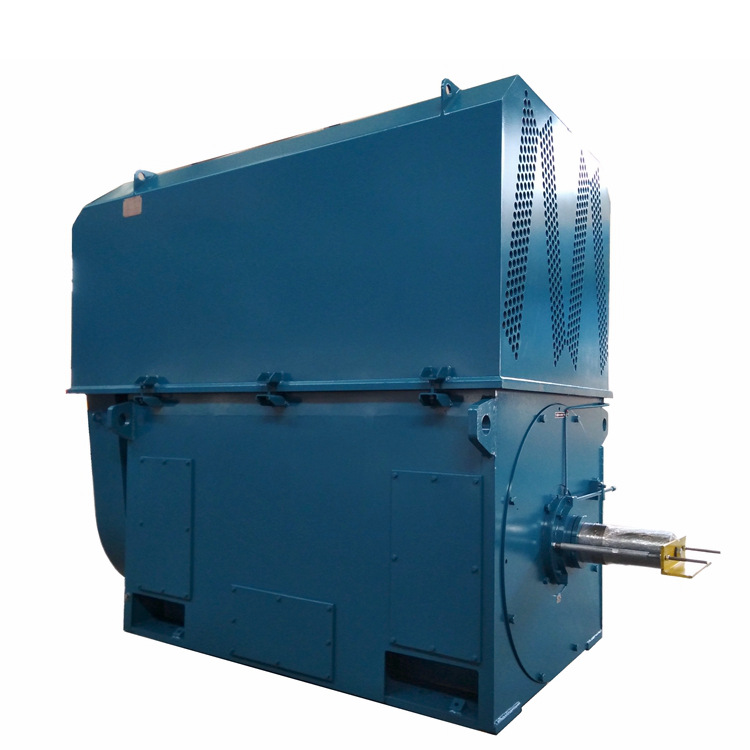

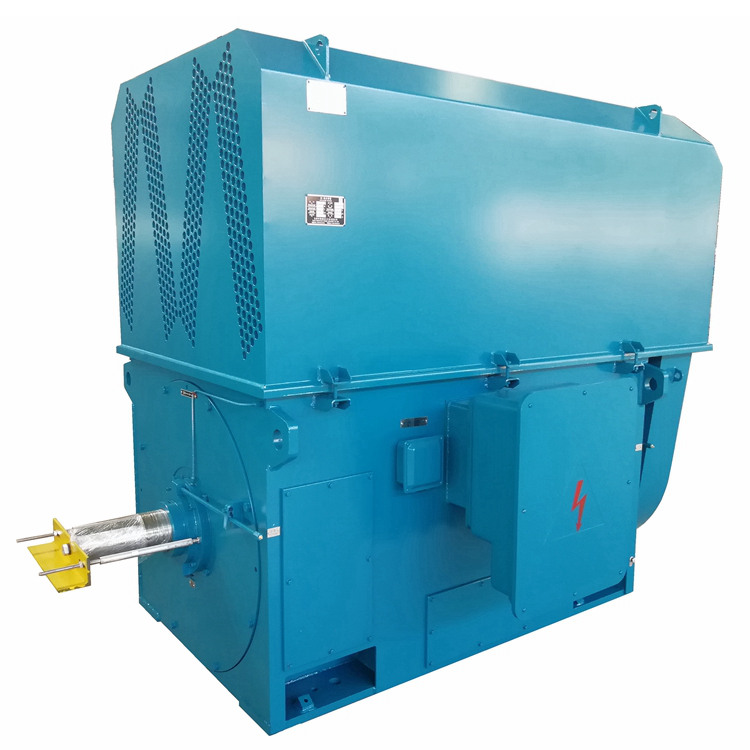

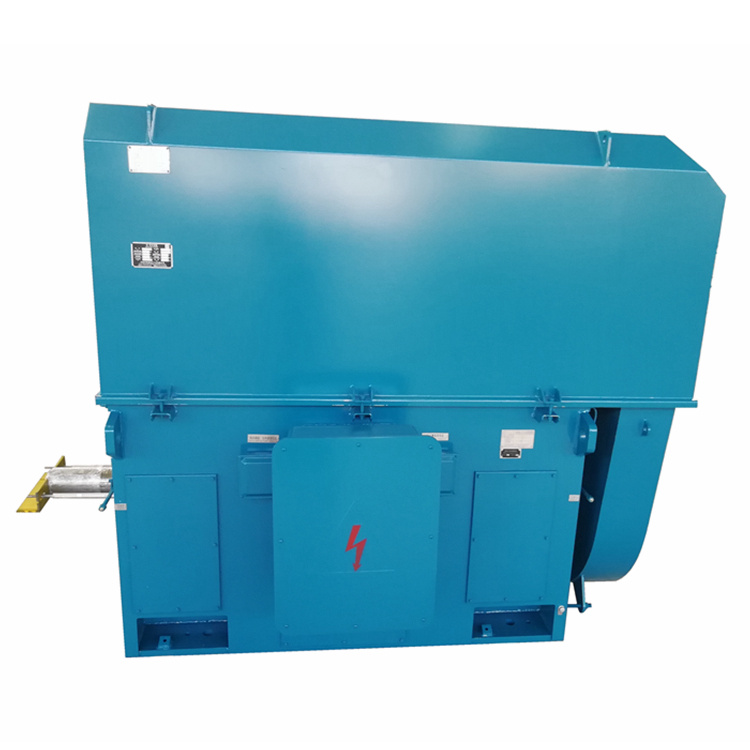

High Voltage Squirrel Cage Induction Motor

Brand: ZCL

Product Origin: China

Delivery Time: 30-65 days

Supply Capacity: 500 per Month

Introducing our High Voltage Squirrel Cage Induction Motor - a reliable and efficient solution for your industrial and commercial needs. Squirrel Cage Motors, also known as Asynchronous Squirrel Cage Motors, are widely used for their simple and robust design, making them a cost-effective choice for various applications.

Product Description

High Voltage Squirrel Cage Induction Motor

YKK series Squirrel cage motors are cage-type asynchronous motor with closed air-to-air cooler. This series of motors is rated IP44 or IP54 and the cooling method is IC611.


YKK series high-voltage three-phase asynchronous Induction motor is a cage asynchronous motor with closed air-to-air cooler. The base and end cover are made of steel plate. The box structure is adopted. The top cover can be opened to observe the internal condition of the motor. All components can be disassembled and assembled for convenient installation and maintenance.


YKK squirrel cage Induction motor has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance. Can be used to drive a variety of different machinery. Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used by coal mines, machinery industry, power plants and various industrial and mining enterprises.


The structure and installation form of YKK series Asynchronous Squirrel Cage Motors are IMB3. The quota is continuous rating based on continuous working system (S1). The rated frequency of the motor is 50HZ, the rated voltage is 6KV/10KV, other voltage grades or special requirements are ordered. It can be agreed with the user.

Squirrel Cage Motors

Our High Voltage Squirrel Cage Induction Motor is designed to withstand high voltages and operate at high efficiencies, ensuring optimal performance and reduced energy consumption. Its compact size and low maintenance requirements make it ideal for use in a variety of industrial and commercial settings.

With its durable construction and advanced technology, our High Voltage Squirrel Cage Induction Motor delivers excellent performance and reliability, ensuring a long lifespan and low operating costs. Trust us to provide you with a motor that exceeds your expectations and meets your specific needs.


High Voltage Squirrel Cage Induction Motor

Center height range: H355~1000mm

Power range: 185kW to 12000kW

Number of poles: 2/4/6/8/10/12/16

Rated voltage: 3000V/3300V/6000V/66000V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

Squirrel cage motors are suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).

High Voltage Squirrel Cage Induction Motor

YKK high-voltage squirrel cage Induction motor has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance. Squirrel Cage Motor can be used to drive a variety of different machinery. Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used by coal mines, machinery industry, power plants and various industrial and mining enterprises.

High Voltage Squirrel Cage Induction Motor

High Voltage Squirrel Cage Induction Motor

Main process flow of the squirrel cage motor

Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying

Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance

Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage

High Voltage Squirrel Cage Induction Motor

Asynchronous Squirrel Cage Motors

High Voltage Squirrel Cage Induction Motor

The squirrel cage motor products manufactured and sold by our company are used in many industries, such as electric power, mining, steel metallurgy, petrochemical, water conservancy, transportation, building materials and many other industries. The equipment for the motor is pump, machine tool, fan, mill, crusher, rolling mill, compressor and many other industrial equipment.

High Voltage Squirrel Cage Induction Motor

High Voltage Squirrel Cage Induction Motor

1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.

2, the product packaging is protected by moisture, water plastic soft packaging

3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.

4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).

High Voltage Squirrel Cage Induction Motor

High Voltage Squirrel Cage Induction Motor

More details, welcome to call us!

Q: What are the payment terms?

A: 30% T/T in advance, 70% before shipment

Q: What is your delivery time?

A: Different models with different time, 10-90 days after order confirmed.

Q: What is your MOQ?

A: It depends on model.

Q: Where is your loading port?

A: Shanghai or Tianjing Port, China.


Besides squirrel cage motors, we also have a wide variety of other types of motors that you can view by clicking here.
