Explosion-Proof Electric Motors: Class, Groups and Divisions

Apr. 15, 2025
Share:

Explosion-proof electric motors are critical components used in hazardous environments where combustible gases, dust, or fibers are present. These motors are specifically engineered to prevent sparks or ignition that could lead to an explosion, ensuring safety and operational efficiency in industrial applications. In this article, we’ll explore the key classifications—Class, Groups, and Divisions—that determine the suitability of explosion-proof motors for different hazardous environments. By understanding these classifications, industries can select the right motor, minimizing the risk of hazardous accidents.



What Are Explosion-Proof Electric Motors?



Explosion-proof electric motors are designed to operate safely in environments where the presence of explosive gases, dust, or fibers is a potential hazard. These motors are built with protective enclosures, special sealing systems, and other safety features that prevent the ignition of explosive materials in the surrounding atmosphere. These motors are typically used in industries like oil and gas, pharmaceuticals, chemical processing, mining, and agriculture, where explosive atmospheres may be present due to the materials being handled.

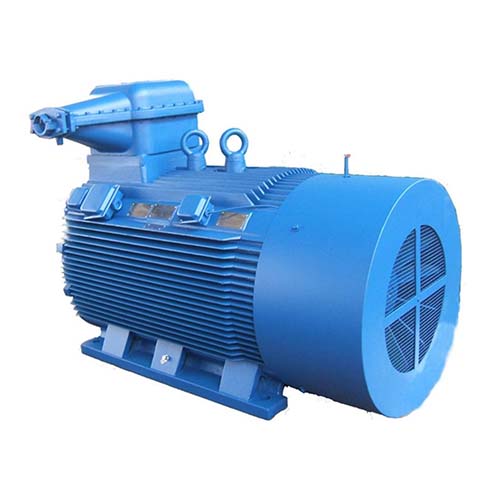

YB2 Explosion-Proof Electric Motor

YB2 Explosion-Proof Electric Motor


Classifications: Class, Groups & Divisions Explained



The classification system for explosion-proof electric motors is vital to ensuring that these motors meet safety standards for specific hazardous environments. The system consists of three key components: Class, Groups, and Divisions. Each of these categories describes the nature of the explosive environment and the level of protection required for the motor. Let's dive deeper into each of these classifications.



Class of Explosion-Proof Motors



The Class of an explosion-proof motor identifies the type of hazardous atmosphere in which the motor is designed to operate. There are three main Classes: I, II, and III.



Class I: Flammable Gases and Vapors



Class I explosion-proof motors are designed for use in environments where flammable gases or vapors are present. This includes industries like petrochemical, oil and gas, and pharmaceutical manufacturing, where gases such as methane, propane, and hydrogen may be in the atmosphere. Motors in Class I environments must be designed to contain any ignition that could occur within the motor's components and prevent sparks from escaping into the surrounding environment.



Class II: Combustible Dust



Class II explosion-proof motors are intended for environments where combustible dusts are present, which can pose a risk of ignition when exposed to heat or sparks. Industries like food processing, grain milling, and cement production typically require Class II-rated motors. These motors are specially sealed and designed to prevent any sparks or overheating components from igniting dust particles in the air, which could lead to an explosion.



Class III: Fibers and Flyings



Class III explosion-proof motors are used in environments where easily ignitable fibers and flyings are present. This includes industries like textiles, paper mills, and other manufacturing facilities that deal with fibrous materials. These motors must be constructed to prevent any internal explosions or ignition that could occur when the motor is exposed to these fibers.



Groups: Defining Specific Hazardous Materials



The Groups classification describes the specific hazardous materials that the motor is designed to withstand. It provides more detailed information about the environment and its specific risk factors. Each Class is divided into Groups to specify the characteristics of the hazardous materials present.



Group A: Acetylene



Group A motors are designed for environments where acetylene, a highly explosive gas, is present. Acetylene poses a significant risk because it can easily ignite under certain conditions. Explosion-proof motors designed for Group A environments are built with specialized enclosures and safety mechanisms to prevent any spark or heat from causing ignition.



Group B: Hydrogen and Fuel Gases



Group B explosion-proof motors are intended for environments where hydrogen or other highly flammable fuel gases are present. Hydrogen, in particular, is a gas that can ignite easily and poses a significant risk of explosion. Motors in this group must be constructed to prevent ignition from occurring within the motor and to contain any sparks that could ignite the surrounding gas mixture.



Group C: Ethylene and Propylene



Group C-rated motors are used in environments with gases like ethylene and propylene. These gases are less hazardous than acetylene and hydrogen but still pose a risk of explosion. Explosion-proof motors in this group are designed to withstand these risks and prevent any ignition that could lead to an explosion in the surrounding environment.



Group D: Flammable Gases (Methane, Propane, etc.)



Group D explosion-proof motors are the most commonly used motors in industrial applications. They are designed for environments where flammable gases such as methane, propane, and natural gas are present. Motors rated for Group D are built with high levels of protection to contain any internal sparks and prevent them from igniting the surrounding gases.



Divisions: Risk of Explosion in the Environment



The Divisions classification describes the likelihood and duration of a hazardous atmosphere being present in a given environment. Divisions help define the level of protection that the motor needs to offer.



Division 1: Hazardous Atmosphere is Present During Normal Operations



Division 1 motors are designed for environments where the hazardous atmosphere is present during normal operations. This could be a constant or frequent presence of combustible gases, dust, or fibers. Motors in Division 1 environments must have robust protective measures to prevent any spark or heat generated inside the motor from igniting the surrounding atmosphere.



Division 2: Hazardous Atmosphere Present Under Abnormal Conditions



Division 2 motors are designed for environments where the hazardous atmosphere is not present under normal operations but may occur under abnormal conditions such as leaks, equipment malfunctions, or spills. These motors must still offer explosion protection in case an ignition occurs due to a fault in the system, but they are not designed for environments where explosive materials are always present.



How to Choose the Right Explosion-Proof Motor?



Choosing the right explosion-proof motor depends on several factors, including the type of hazardous material, the classification of the environment, and the specific requirements of your application. It's crucial to work with industry professionals who can assess your environment and recommend the appropriate motor that meets the safety standards and performance requirements. Whether you're dealing with flammable gases, combustible dust, or fibers, selecting the right motor will help ensure the safety and productivity of your operation.



FAQ: Common Questions About Explosion-Proof Motors



1. What is the difference between Class I and Class II explosion-proof motors?

Class I motors are designed for environments with flammable gases or vapors, while Class II motors are designed for environments with combustible dust.

2. Can explosion-proof motors be used in non-hazardous areas?

Yes, explosion-proof motors can be used in non-hazardous areas, but they are typically over-engineered for such applications and may not be the most cost-effective solution.

3. What maintenance is required for explosion-proof motors?

Explosion-proof motors should be regularly inspected for signs of wear, damage, or corrosion. Any issues that could compromise the motor's protective features should be addressed immediately.



Conclusion



Explosion-proof electric motors play a vital role in ensuring safety in hazardous environments where explosive materials are present. By understanding the classifications—Class, Groups, and Divisions—industries can select the right motor to meet their specific needs. Whether you are working with flammable gases, combustible dust, or fibers, choosing the correct motor ensures that you meet safety standards, minimize risks, and maintain operational efficiency. If you’re looking for high-quality explosion-proof motors tailored to your environment, reach out to us for expert advice and solutions designed to meet your needs.
