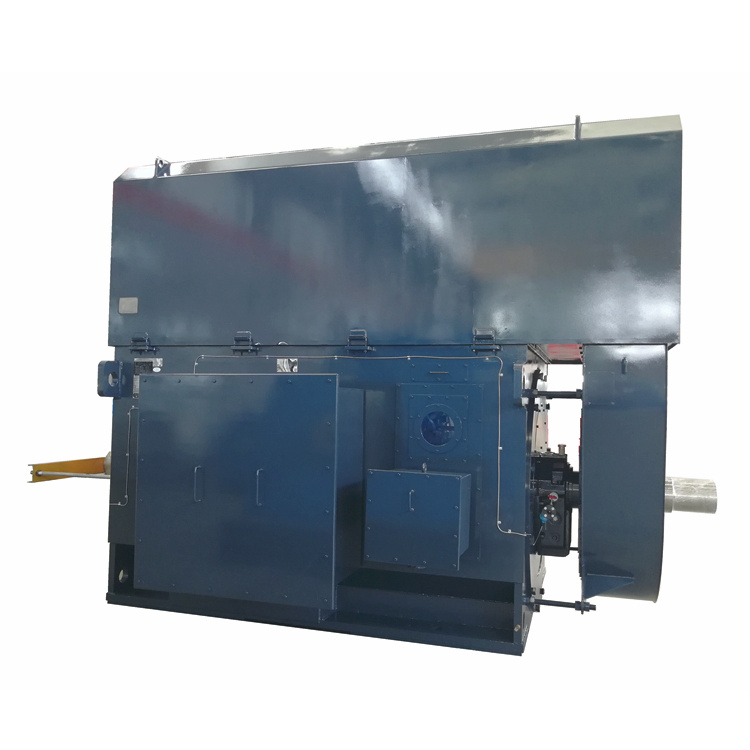

Large Electric Motor


Brand: ZCL

Product Origin: China

Delivery Time: 30-90 days

Supply Capacity: 1000 units/month


Product Description

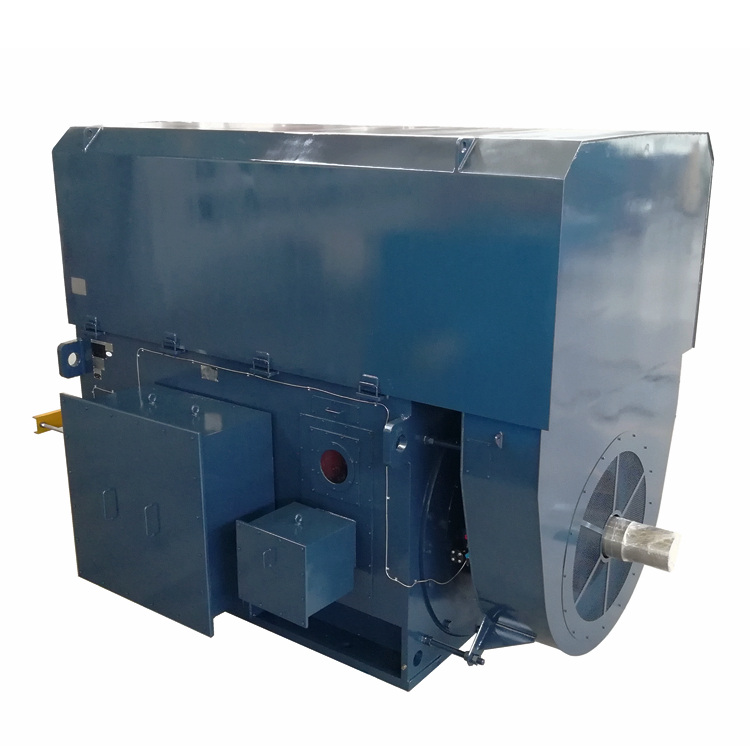

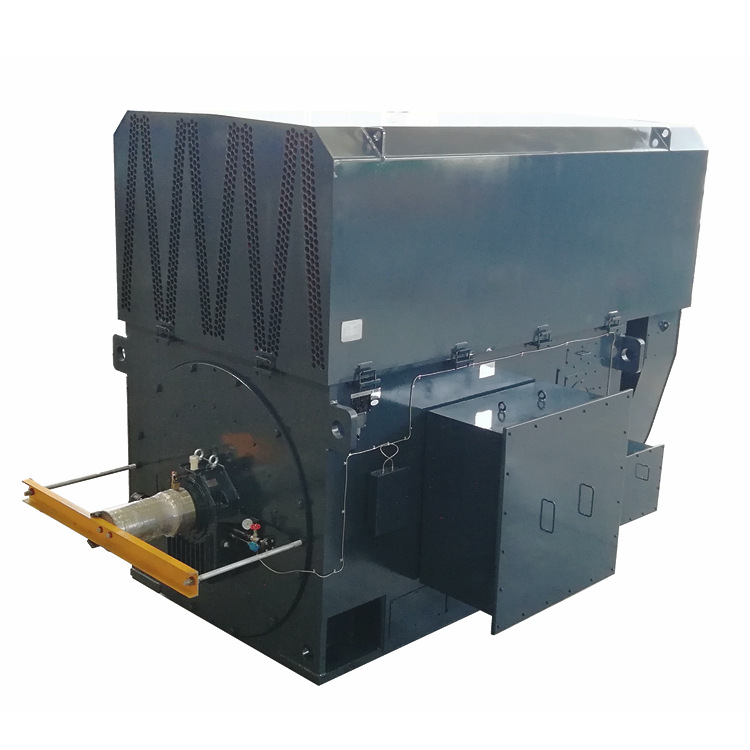

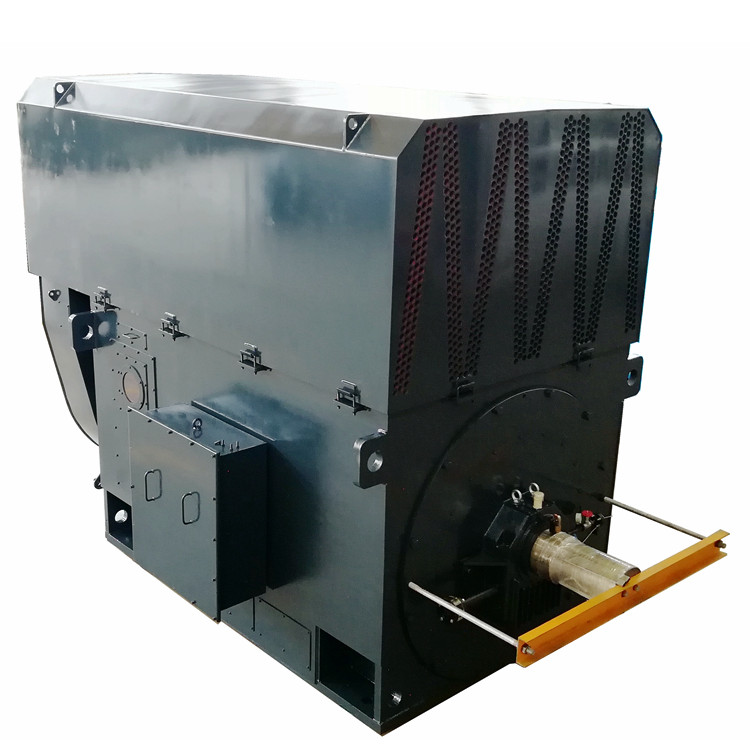

Large Electric Motor

Professional custom production of various high and low voltage motors

Large Electric Motor

Center height range: H355 ~ 1000mm

Power range:200kW ~ 12000kW

Number of poles: 4/6/8/10/12

Rated voltage: 3000V/3300V/6000V/6600V/10000V/11000V/13800V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC411(TEFC)、IC416、IC611、IC616、IC666、IC81W

Installation form: IMB3、IMV1、 IM7311

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).

Large Electric Motor

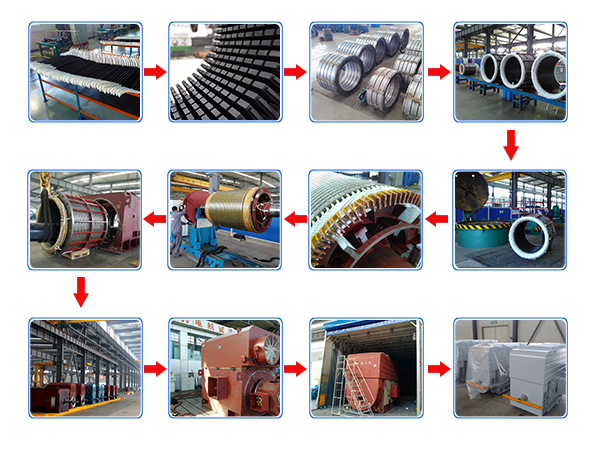

Main process flow of the motor

Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying

Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance

Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage

Large Electric Motor

Large Electric Motor

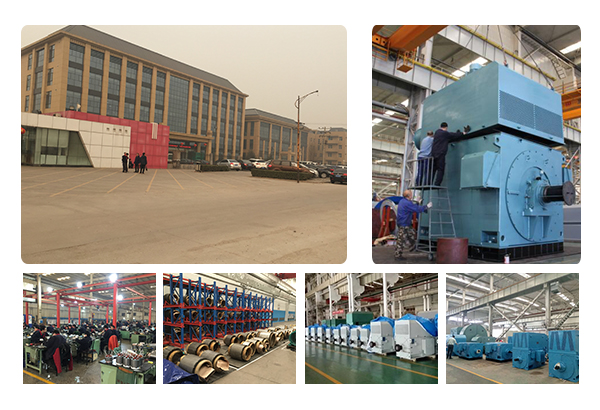

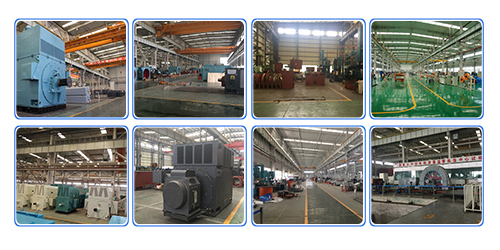

Our company's motor manufacturing factory adheres to the concept of green, efficient and energy-saving production service, pays attention to the harmonious development of internal and external environment, builds environmentally friendly motor manufacturing enterprises, strictly implements motor standard process, and selects high-quality energy-saving materials to ensure the quality of motor products.


Large Electric Motor

Large Electric Motor

Large Electric Motor

Large Electric Motor

Large Electric Motor

Why choose us (our service advantage)

1. Professional motor manufacturing service provider;

2. Sound product quality management and certification system;

3. Have a professional sales and technical service team;

4. The motor has perfect process and strong mechanical processing capability;

5. High standard product technical service system;

6, good faith and mutual benefit, good credit guarantee.
