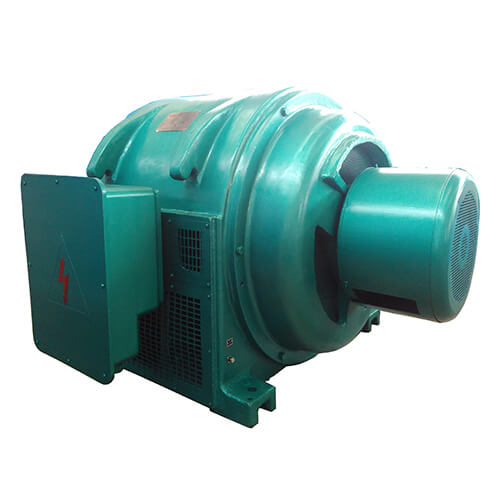

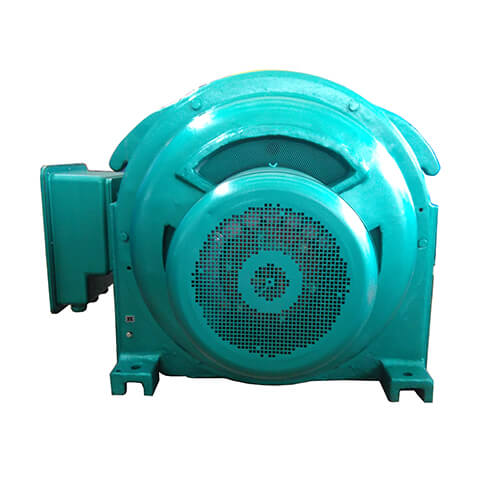

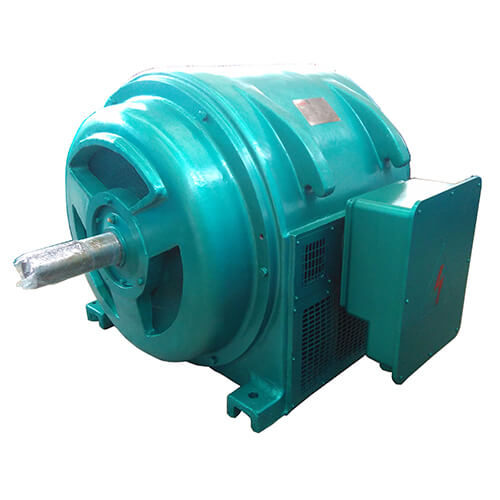

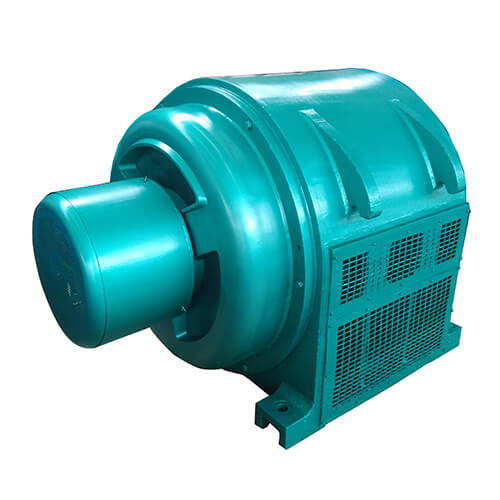

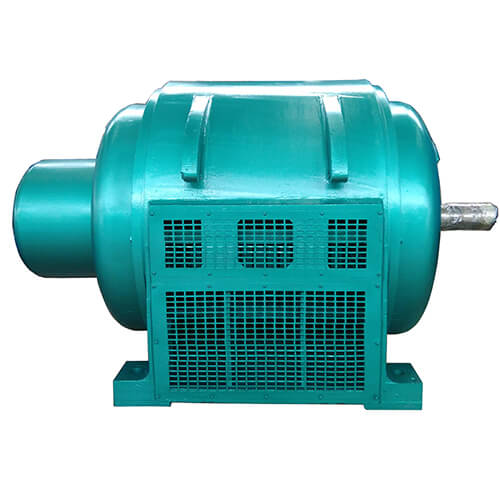

Slip Ring Motor for Ball Mill

YRQ winding slip ring motor is specially designed for ball mills. This series of motors is a derivative of the original JR slip ring motor. It is a new product that optimizes the product structure and improves the process design, maximally meeting the use of mill equipment.

YRQ series ball mill motor windings have high mechanical strength and improve the insulation level of the motor. The slip ring and carbon brush device of the motor are placed outside the end cover, which can effectively prevent carbon dust from contaminating the coil, and at the same time, it is easy to replace and repair. In the manufacturing process, the power frequency to ground pressure test of the turn-to-turn pulse withstand tester was carried out. The stator and rotor windings were made of F-grade insulating varnish and cured by high temperature drying. The insulation performance of the motor was stable and reliable.

YRQ ball mill special winding slip ring motor is a new product motor based on the original JR winding slip ring motor. The motor installation size and power and voltage level are consistent with the original JR motor, ensuring no difference in customer use. . YRQ motors comply with the relevant standards of relevant technical conditions.

YRQ ball mill motor adopts rotor string resistance full-voltage start-up, which has the advantages of small starting current, large starting torque, high efficiency, low noise, low vibration, good ventilation performance, reliable operation and convenient installation and maintenance.

YRQ ball mill motors are widely used in mining machinery, such as ball mills, crushers, etc. It can also drive a variety of different machines, such as fans, compressors, pumps, cutting machines, transport machinery and other equipment.

Ball Mill Motor Parameters

Motor power range: 80KW-900KW

Rated voltage: 380V/415V/660V/690V/3000V/33000V/6000V/10000V

Number of poles: 6/8/10/12

Rated frequency: 50Hz/60Hz

Protection level: IP23

Cooling method: IC01

Working system: S1

Insulation class: B

Wiring method: △

Installation method: B3 (horizontal installation)

Ambient temperature: ≥ -15 ° C and ≤ 40 ° C

The deviation of the rated voltage of the YRQ ball mill motor does not exceed 5%, the allowable deviation of the frequency is 1%, and the sum of the absolute values of the deviations does not exceed 5%.

Feature of Ball Mill Motor

YRQ ball mill motor adopts rotor string resistance full-voltage start-up, which has the advantages of small starting current, large starting torque, high efficiency, low noise, low vibration, good ventilation performance, reliable operation and convenient installation and maintenance.

Our Ball Mill Motor features advanced technology and superior construction, with durable and high-quality components that ensure long-lasting performance and minimal maintenance requirements. Our motors are designed to operate at high efficiency, providing cost-effective power solutions for your business needs.

Whether you require a new ball mill motor or need to replace an existing one, our Slip Ring Motor for Ball Mill is the ideal solution. With a range of power ratings available, we can tailor our motor to meet your specific requirements and ensure optimal performance. Customize My Special One Today!

More Product

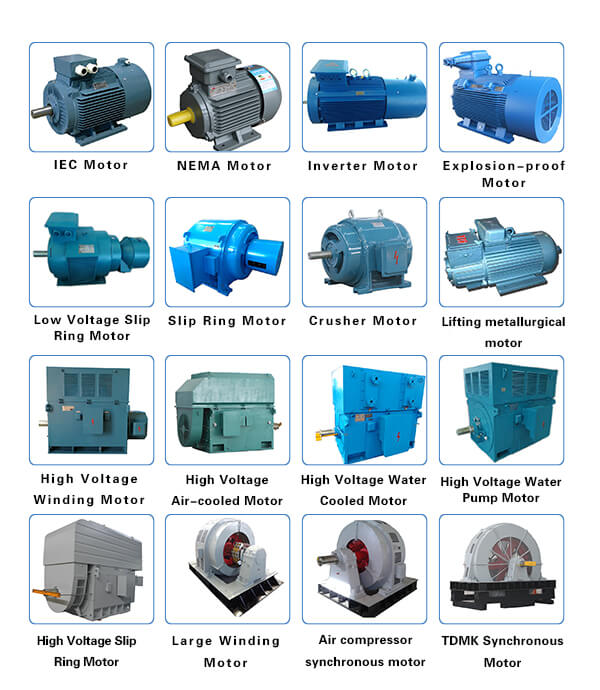

There are many types of motor products manufactured and sold by our company. The main products are high- and low-voltage three-phase asynchronous motors. The motor structure types include squirrel-cage type and winding type. Among them, high-voltage synchronous motors mainly support air compressors and mine ball mill equipment. use. We adhere to the service tenet of "focus on products, service with heart" and provide high-quality motor products to customers.

Certifications

The motor products manufactured by our company have obtained the ISO9001 quality management management system certification, passed the CCC/COC, China energy-saving product certification, and passed the certification certificates of CE/UL/IRIS/CAS and other European and American countries. The company strictly improves the quality and efficient motor products and services for users in strict accordance with the requirements of relevant product standards.

Product Use

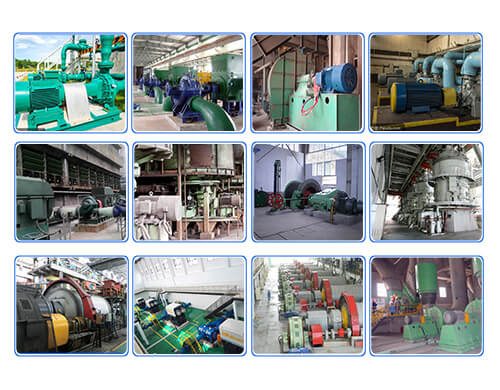

The motor products manufactured and sold by our company are used in many industries, such as electric power, mining, steel metallurgy, petrochemical, water conservancy, transportation, building materials and many other industries. The equipment for the motor is pump, machine tool, fan, mill, crusher, rolling mill, compressor and many other industrial equipment.

We understand the importance of reliability and performance in industrial applications, which is why we use only the highest quality materials and manufacturing techniques to produce our Slip Ring Motor for the Ball Mill. Our motors are rigorously tested to ensure they meet the highest standards of quality and performance, and we stand behind our products with a comprehensive warranty and customer support.

Choose ZCL for your Ball Mill Motor needs and experience the difference between the reliable and efficient performance. Contact us today to learn more about our products and services.
