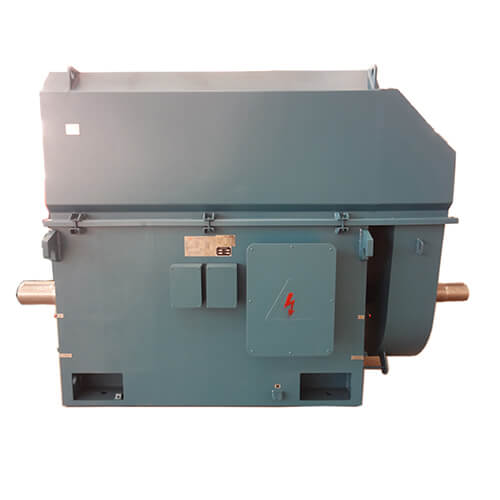

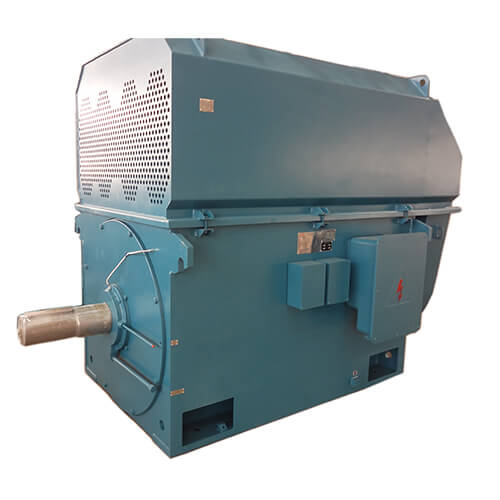

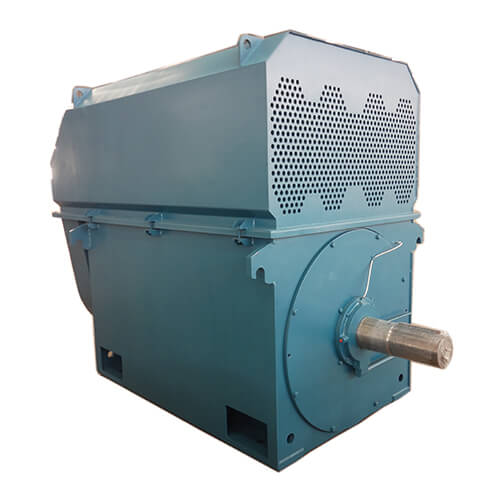

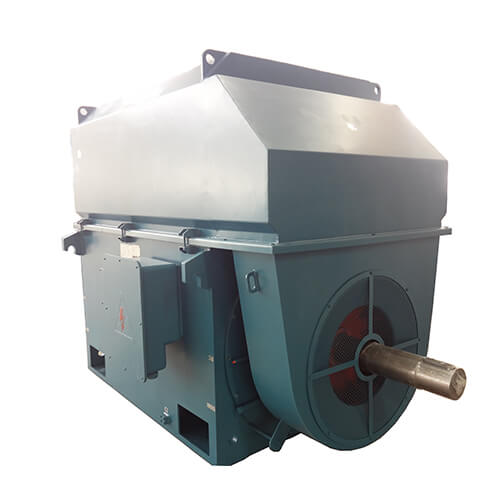

Large Squirrel Cage Motor

Brand: ZCL

Product Origin: China

Delivery Time: 30-65 days

Supply Capacity: 1000 per month


Product Description

YTM, YHP, YMPS series coal mill special three-phase asynchronous high-voltage motor is a closed cage rotor motor. This series of motors is designed and manufactured according to IEC standards, and is specially used for various mills in power stations, mines, metallurgy and other industries.


YTM, YHP, YMPS series large squirrel cage motors have the advantages of large stall torque, large heat capacity, reliable performance, convenient installation and maintenance.


YTM, YHP, YMPS series large squirrel cage motor structure and installation form is IMB3, the quota is a continuous quota based on continuous working system (S1), the rated frequency of the motor is 50HZ, the rated voltage is 6KV, and other products can be made according to requirements. Voltage level. This series of motors is used in many industrial and mining environments, and the motor runs smoothly and safely.

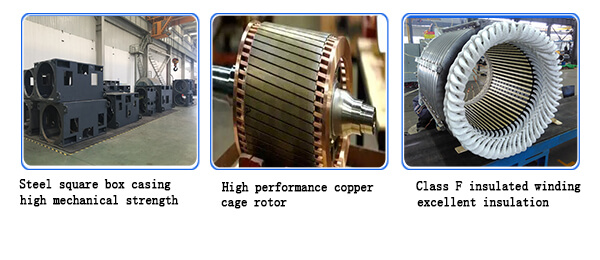

YTM, YHP, YMPS series large squirrel cage motors are high-voltage squirrel-cage motors specially designed for driving coal mills. These series of motors are box-type structures. The bases are welded by steel plates, which are light in weight and good in rigidity. The closed cooler is installed on the top of the motor, which is convenient to disassemble and facilitate the maintenance and repair of the motor.


YTM, YHP, YMPS series large squirrel cage motor stator windings use Class F insulation, reliable fixed binding at the end, and adopts the introduction of Germany's advanced vacuum pressure impregnation solventless paint process (VPI). Therefore, the motor has excellent insulation performance. Reliable, good mechanical strength and good moisture resistance.


YTM, YHP, YMPS series large squirrel cage motors adopt advanced and reliable cast aluminum rotor structure to ensure the reliability of motor operation. YHP, YMPS series motors use a copper bar rotor structure to ensure the high starting torque of the motor.

YTM, YHP, YMPS series large squirrel cage motors are suitable for various coal mills in power stations, mines, metallurgy and other industries, and can also be used to drag other mechanical equipment with similar characteristics.


Product Parameters

Frame No.: H400~800mm

Power range: 200kW~1800kW

Number of poles: 6 to 10

Rated voltage: 3000V, 6000V/6600V, 10000V/11000V

Insulation class: Class F

Protection level: IP54

Installation method: IMB3

Cooling method: IC611

Working system: S1

Environmental conditions: 1000m above sea level, 40°C ambient temperature.

Uses: It can be used to drive low speed (cylinder) and medium speed (bowl) coal mills in power stations, and can also be used to drag other mechanical equipment with similar characteristics.


Feature of Product

YTM, YHP, and YMPS series large squirrel cage motors have the advantages of large stall torque, large heat capacity, reliable performance, and convenient installation and maintenance. The use of advanced and reliable cast aluminum rotor structure or copper strip rotor structure ensures the high starting torque of the motor.

Large Squirrel Cage Motor

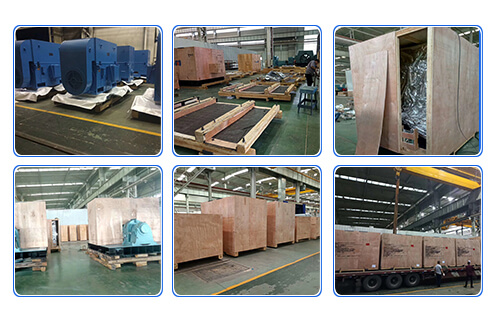

Packing and Shipping

1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.

2. The product packaging is protected by moisture, water plastic soft packaging

3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.

4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).

Large Squirrel Cage Motor

More Product

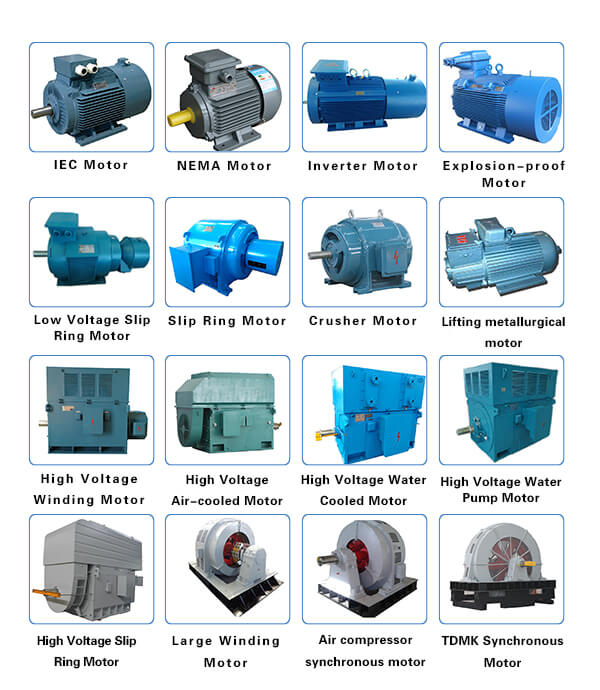

There are many types of motor products manufactured and sold by our company. The main products are high- and low-voltage three-phase asynchronous motors. The motor structure types include squirrel-cage type and winding type. Among them, high-voltage synchronous motors mainly support air compressors and mine ball mill equipment. use. We adhere to the service tenet of "focus on products, service with heart" and provide high-quality motor products to customers.

Large Squirrel Cage Motor

About Us

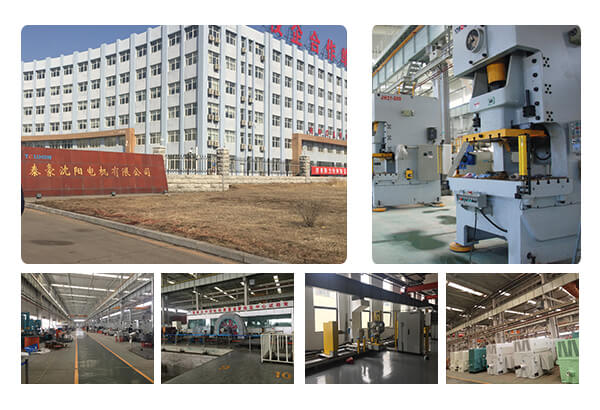

Shijiazhuang ZCL Electric Motor Technology Co., Ltd. is a company mainly engaged in the manufacture, research and development and sales of motor products. The company has many types of motor products, including IEC standard motors. It is a professional IEC motor manufacturer. Related motor products have passed the product certification in China, the United States, Canada, Europe, the Middle East and other regions, and the products are exported to all over the world. Companies adhere to the "focus on products, service" business philosophy, is committed to improving the quality of safe motor products and services for customers around the world.
