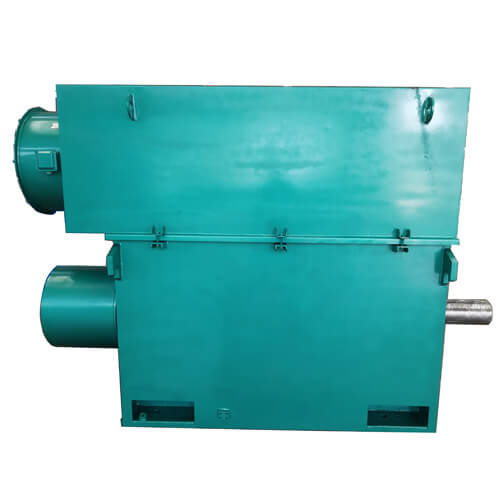

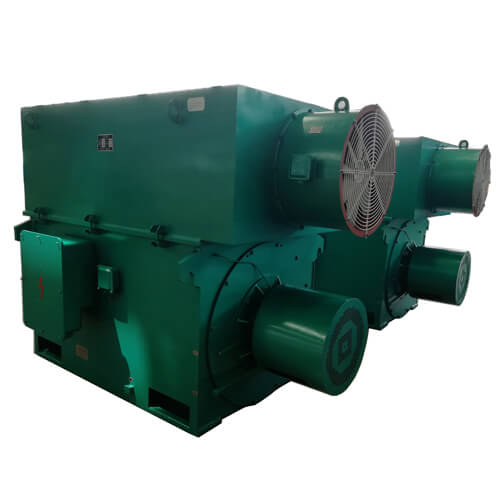

6kv Slip Ring Motor

Brand: ZCL

Product Origin: China

Delivery Time: 40-75 days

Supply Capacity: 300 units/month

Product Description

6KV slip ring motor is a high-voltage wound rotor three-phase asynchronous motor developed and manufactured by our company for many years. This type of motor adopts box structure. The frame is made of steel plate welded box structure, which is light in weight and good in rigidity. There are window holes at the top, which can be installed with a protective cover or cover. After removing the protective cover or cover, you can observe and touch the inside of the motor to facilitate maintenance and repair of the motor.


6KV slip ring motor motor stator adopts slide-in external press-fit structure, stator winding resistance adopts Class F insulation material, and the end has reliable fixing and bundling. During the manufacturing process, multiple turns of pulse voltage test and ground pressure resistance are applied. The test is carried out by vacuum pressure impregnation solventless paint process (VPI). Therefore, the motor has excellent insulation performance, good mechanical strength and strong moisture resistance. The wound rotor is treated with Class F insulation and vacuum pressure impregnation solventless paint process (VPI). The rotor weld head and the wiring are all insulated. The slip ring and stator winding of the motor are located in two isolated spaces to prevent toner from entering the winding.


The power level, installation dimensions and electrical performance of the 6KV high-voltage slip ring three-phase asynchronous motor are in compliance with relevant IEC standards. The basic installation method of the motor is the horizontal bottom angle (IMB3), the working system is the continuous working system (S1), and the wound rotor is made of Class F insulation material.


The bearing of 6KV high-voltage wound rotor slip ring motor has two types of rolling bearing and sliding bearing, depending on the motor power and speed. If the motor has a high degree of protection, the protection level of the bearing will also increase. The rated frequency of the motor's power supply is 50Hz, the rated voltage is 6000V, and the basic type of protection is IP54. The motor slip ring housing can be protected to IP22 or IP23. Other voltage, frequency and degree of protection motors are also available upon request.


6KV high voltage winding rotor slip ring motor main outlet box is IP54 protection grade, generally installed on the right side of the motor (facing the motor shaft extension end), can also be installed on the left side of the motor according to the order requirements. Inside the main outlet box, outside There are separate ground terminals.


6KV high-voltage winding slip ring motor increases the setting and bearing temperature measuring device. It can also add heating device inside the motor. The shaft extension key of the motor generally adopts the tangential key, and the motor carbon brush is not lifting structure.


6KV high-voltage wound rotor slip ring motor can be used to drive a variety of different machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery industry, petrochemical industry, power plants, etc. Used as prime mover in various industrial and mining enterprises. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.


Product Parameters

Center height range: H355 ~ 1000mm

Power range: 220kW ~ 10000kW

Number of poles: 2/4/6/8/10/12

Rated voltage: 6000V/6600V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).


Feature of Product

The 6KV high-voltage wound rotor slip ring motor can increase the large starting torque at a small starting current. The motor is suitable for applications where the capacity of the feeder line is insufficient to start the squirrel-cage rotor, the starting time is long, the starting is frequent, and the small-range speed regulation is required. This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.

6kv Slip Ring Motor

Equipment Capacity

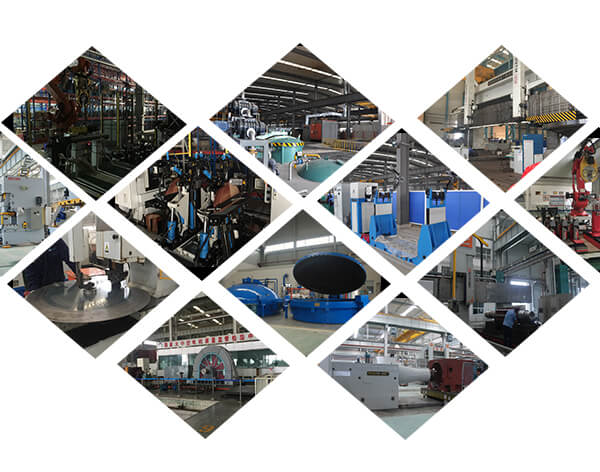

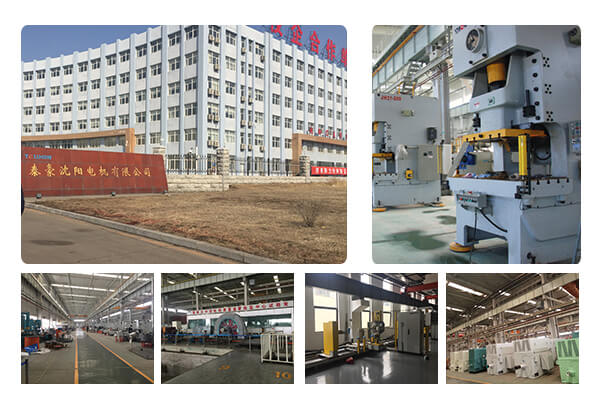

The company has large-scale laboratory, intelligent CNC winding machine, CNC rising machine, automatic wrapping machine, VPI high pressure vacuum immersion system, large-scale dipping paint drying furnace, 60 tons test platform, large vertical car, milling machine, grinding machine, Each type of dynamic balancing machine, double-feedback test and detection system with 6MW (12MW) motor and other motor production professional equipment more than 500 sets, sound mechanical equipment processing capacity, to lay a good foundation for customers to improve good quality motor products.

6kv Slip Ring Motor

Certifications

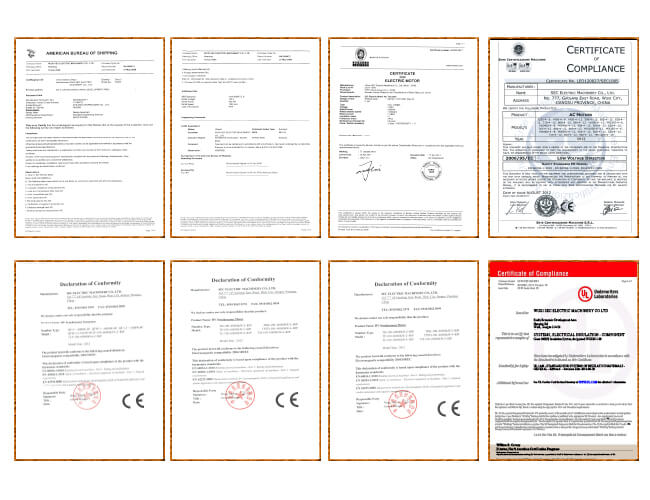

The motor products manufactured by our company have obtained the ISO9001 quality management management system certification, passed the CCC/COC, China energy-saving product certification, and passed the certification certificates of CE/UL/IRIS/CAS and other European and American countries. The company strictly improves the quality and efficient motor products and services for users in strict accordance with the requirements of relevant product standards.

6kv Slip Ring Motor

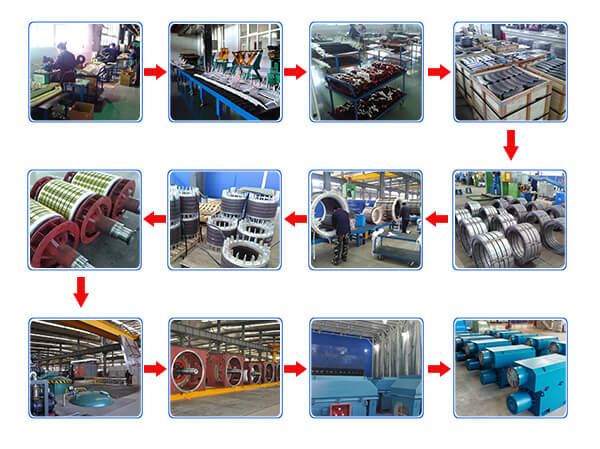

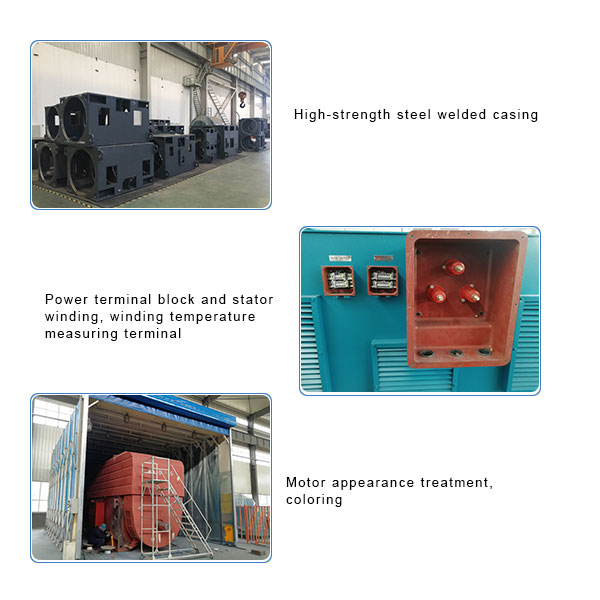

Main Process Flow of the Motor
