Slip Ring Motor

Brand: ZCL

Product Origin: China

Delivery Time: 40-75 days

Supply Capacity: 300 units/month

Product Description

YRKK series motors are slip-surrounding three-phase asynchronous motors, which can increase the starting torque at a small starting current.

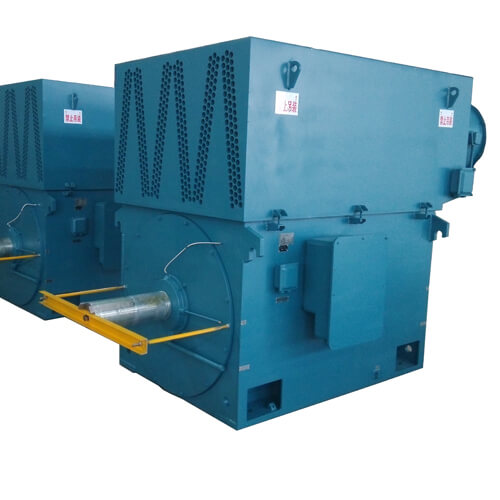

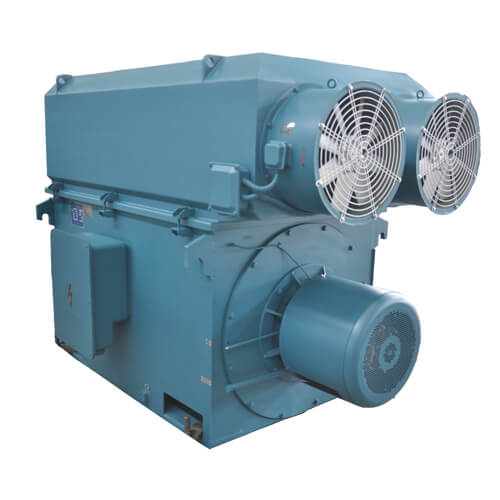

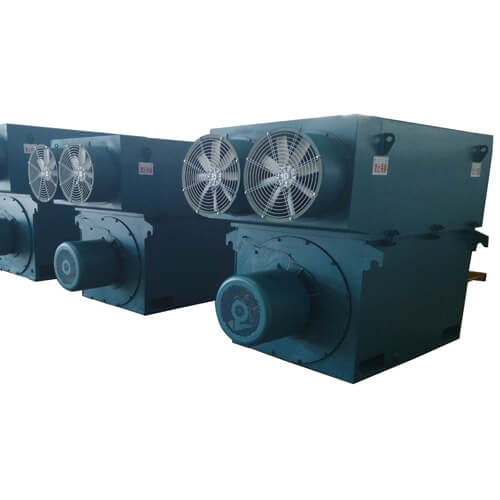

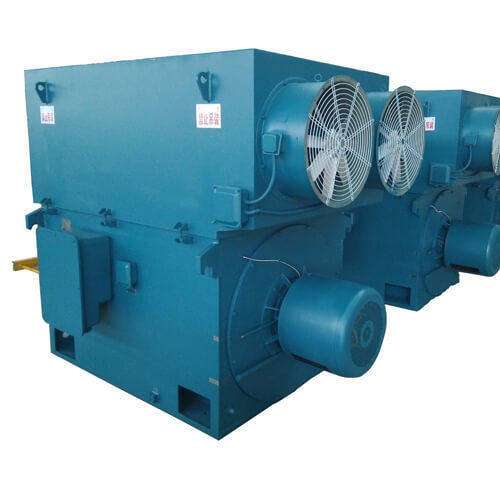

The YRKK slip ring motor is a box-type structure, and the base is welded by steel plate, which is light in weight and good in rigidity. The closed air/air cooler is installed on the top of the motor, which is convenient for disassembly and assembly, which is beneficial to the maintenance and repair of the motor. The sliding ring cover has an observation window for observing the operation.

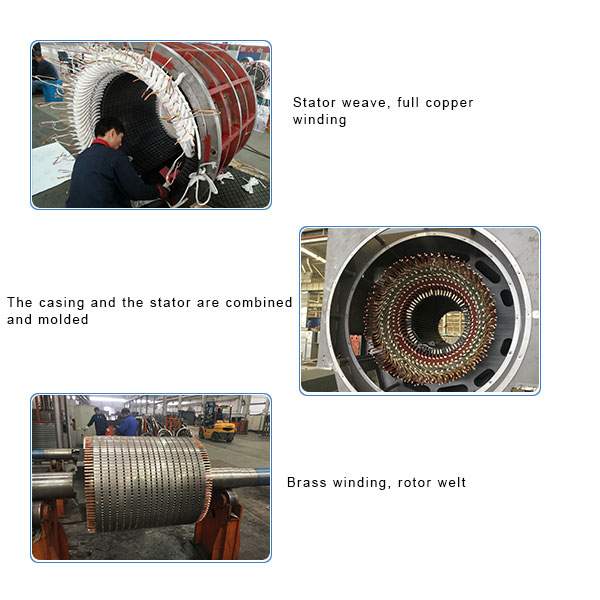

YRKK high-voltage slip ring motor stator adopts external press-fit structure, the stator winding adopts Class F insulation material, the end has reliable fixing and binding, and many times of inter-turn pulse voltage test and ground withstand voltage test are carried out in the manufacturing process, and It adopts advanced foreign vacuum pressure impregnation solventless paint equipment and process (VPI) treatment. Therefore, the insulation performance of the motor is excellent and reliable, the mechanical strength is good, and the moisture resistance is strong.


The high-voltage slip ring motor is a wound-type three-phase asynchronous motor. The power rating, installation dimensions and electrical performance of this type of motor are in compliance with relevant IEC standards. The basic installation method of the motor is the horizontal bottom angle (IMB3), the working system is the continuous working system (S1), and the wound rotor is made of Class F insulation material.


The bearings of high voltage slip ring motors are available in both rolling and plain bearings, depending on the motor power and speed. The rated frequency of the motor's power supply is 50Hz, the rated voltage is 6000V/10000V, and the basic type of protection is IP54. The motor slip ring housing can be protected to IP22 or IP23. Other voltage, frequency and degree of protection motors are also available upon request.


High-voltage slip ring motors can be used to drive a variety of different machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery industry, petrochemical industry, power plants and other industrial and mining Used as a prime mover in an enterprise. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.


Product Parameters

Center height range: H355 ~ 1000mm

Power range: 185kW ~ 5600kW

Number of poles: 2/4/6/8/10/12/16

Rated voltage: 3000V/3300V/6000V/6600V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).


Feature of Product

YRKK series motors are slip-surrounding three-phase asynchronous motors, which can increase the starting torque at a small starting current. The motor is suitable for applications where the capacity of the feeder line is insufficient to start the squirrel-cage rotor, the starting time is long, the starting is frequent, and the small-range speed regulation is required. This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.

Slip Ring Motor

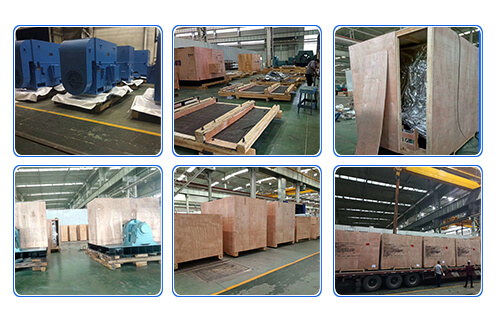

Packing and Shipping

1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.

2. The product packaging is protected by moisture, water plastic soft packaging

3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.

4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).

Slip Ring Motor

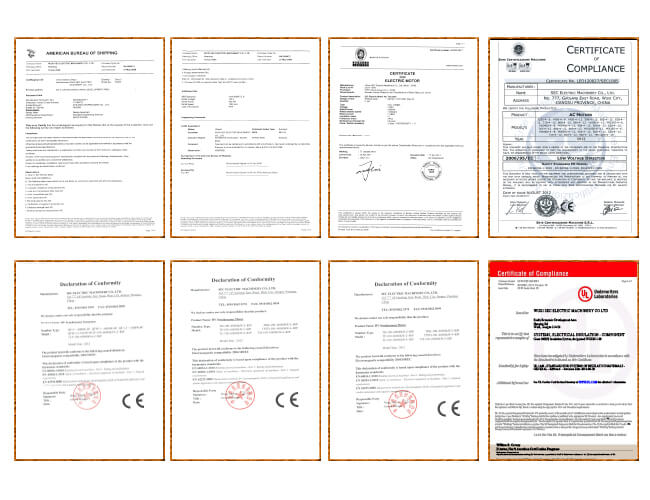

Certifications

The motor products manufactured by our company have obtained the ISO9001 quality management management system certification, passed the CCC/COC, China energy-saving product certification, and passed the certification certificates of CE/UL/IRIS/CAS and other European and American countries. The company strictly improves the quality and efficient motor products and services for users in strict accordance with the requirements of relevant product standards.

Slip Ring Motor

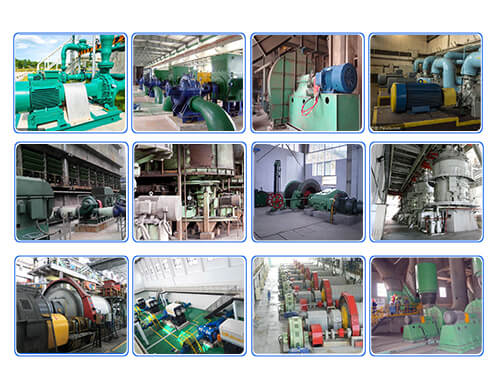

Product Use

The motor products manufactured and sold by our company are used in many industries, such as electric power, mining, steel metallurgy, petrochemical, water conservancy, transportation, building materials and many other industries. The equipment for the motor is pump, machine tool, fan, mill, crusher, rolling mill, compressor and many other industrial equipment.

Slip Ring Motor

Why Choose Us(our service advantage)

1. Professional motor manufacturing service provider;

2. Sound product quality management and certification system;

3. Have a professional sales and technical service team;

4. The motor has perfect process and strong mechanical processing capability;

5. High standard product technical service system;

6. Good faith and mutual benefit, good credit guarantee.
