High Voltage Wound Rotor Induction Motor

Brand ZCL

Product origin China

Delivery time 45-90 Days

Supply capacity 100 units / month


Welcome To Contact ZLC For Best Offer

Product Description

Basic introduction of Wound Rotor Induction Motor:

Wound rotor induction motor is a motor product developed and manufactured by ZCL based on years of research and development and manufacture of high-voltage three-phase asynchronous motor. Wound Rotor adopts box type structure. The frame is made of steel plate welded box structure, which is light in weight and good in rigidity.

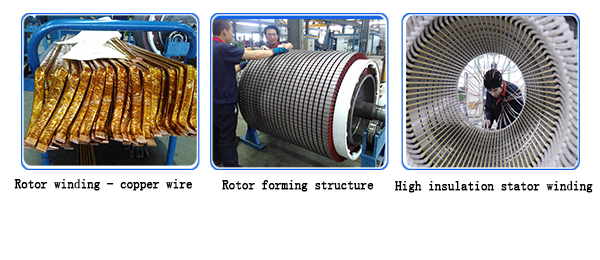

YRKS large high-voltage slip ring motor motor stator adopts slide-in external press-fit structure, stator winding resistance adopts F-class insulation material, and the end has reliable fixing and bundling. After many times of inter-turn pulse voltage test in the manufacturing process and The ground pressure test is carried out by vacuum pressure impregnation solventless paint process (VPI). Therefore, the insulation performance of the motor is excellent and reliable, the mechanical strength is good, and the moisture resistance is strong. The wound rotor is treated with Class F insulation and vacuum pressure impregnation solventless paint process (VPI). The rotor weld head and the wiring are all insulated. The slip ring and stator winding of the motor are located in two isolated spaces to prevent toner from entering the winding. The bearing has two types of rolling bearing and sliding bearing. According to the Wound Rotor power and speed, the basic form of protection is IP54. If the wound rotor has a high degree of protection, the protection level of the bearing will also increase.
The main high-voltage slip ring motor main outlet box is IP54 protection grade, generally installed on the right side of the motor (facing the motor shaft extension end), or can be installed on the left side of the motor according to the order. The main outlet box has a separate external Ground terminal. The top of the wound rotor is a separate water cooler system.

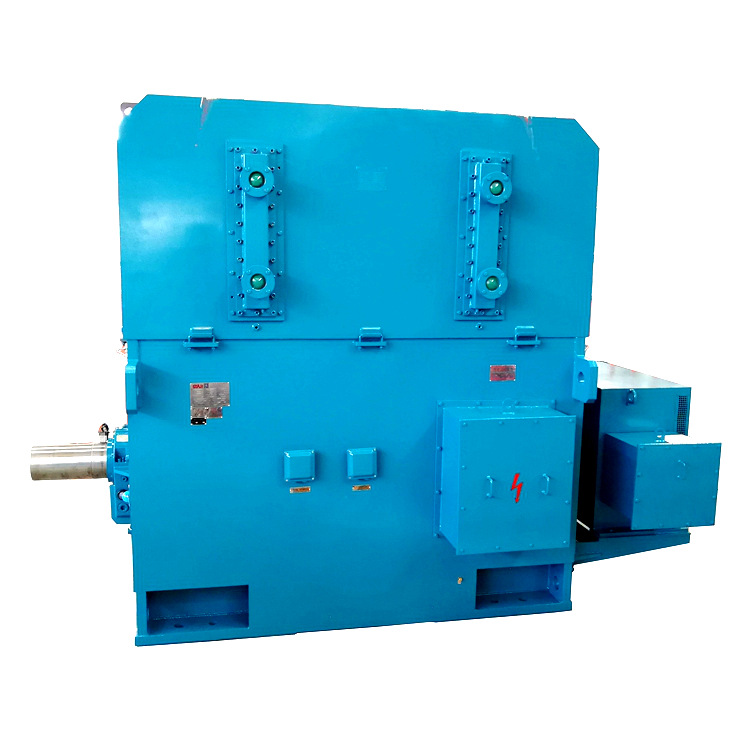

High Voltage Wound Rotor Induction Motor

Wound Rotor Induction Motor Parameters:

Center height range: H400 ~ 1000mm

Power range:200kW ~ 12000kW

Number of poles: 4/6/8/10/12

Rated voltage: 6000V/6600V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC81W

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

Wound Rotor Induction Motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).


Features:

YRKS large high-voltage wound rotor slip ring motor can increase the starting torque at a small starting current. The Wound Rotor is suitable for applications where the capacity of the feeder line is insufficient to start the squirrel-cage rotor, the starting time is long, the starting is frequent, and the small-range speed regulation is required. This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.

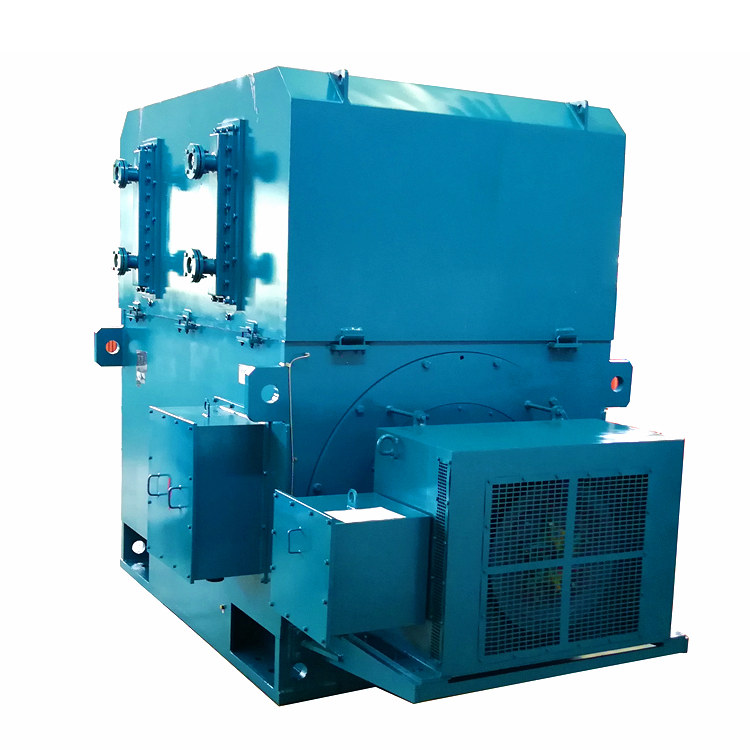

High Voltage Wound Rotor Induction Motor

High Voltage Wound Rotor Induction Motor

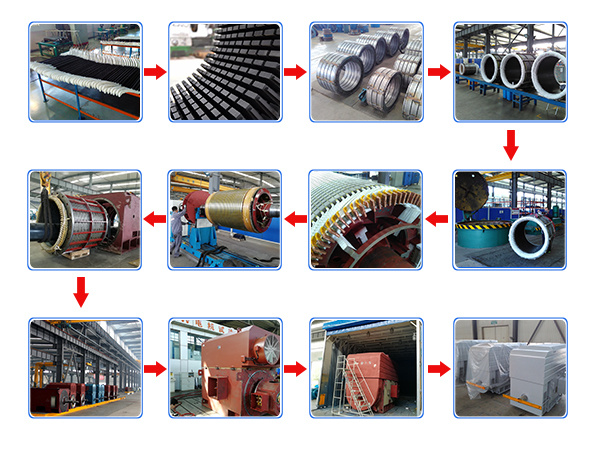

Main process flow of the motor

Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying

Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance

Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage

High Voltage Wound Rotor Induction Motor

High Voltage Wound Rotor Induction Motor

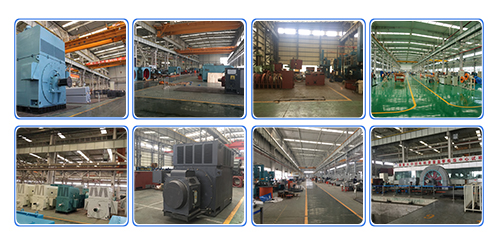

Our company's motor manufacturing factory adheres to the concept of green, efficient and energy-saving production service, pays attention to the harmonious development of internal and external environment, builds environmentally friendly motor manufacturing enterprises, strictly implements motor standard process, and selects high-quality energy-saving materials to ensure the quality of motor products.

High Voltage Wound Rotor Induction Motor

High Voltage Wound Rotor Induction Motor

1. Professional motor manufacturing service provider;

2. Sound product quality management and certification system;

3. Have a professional sales and technical service team;

4. The motor has perfect process and strong mechanical processing capability;

5. High standard product technical service system;

6, good faith and mutual benefit, good credit guarantee.
