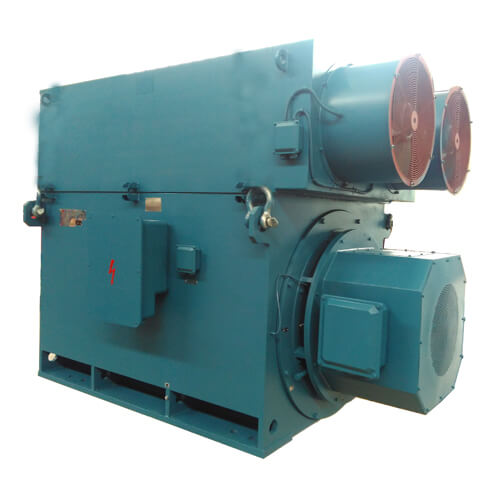

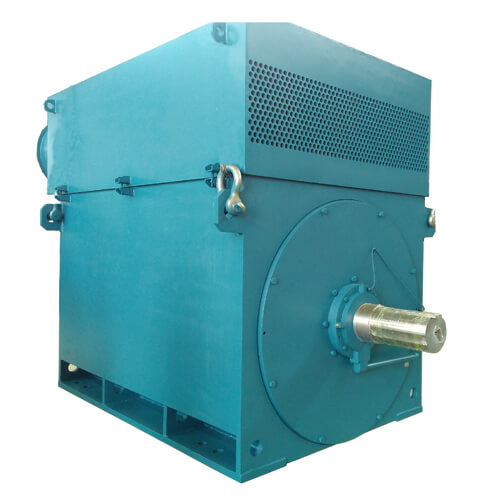

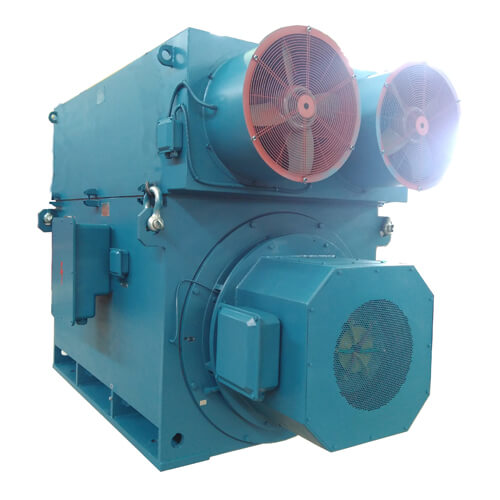

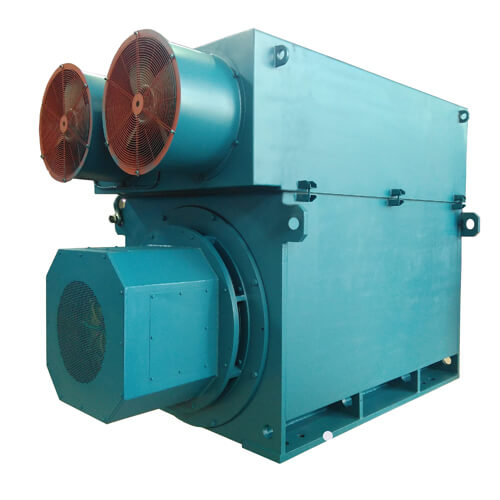

High-voltage Wound Rotor Slip Ring Motor

Brand: ZCL

Product Origin: China

Delivery Time: 40-75 days

Supply Capacity: 300 units/month

Product Description

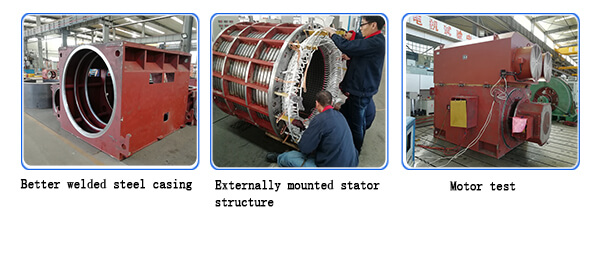

The high-voltage wound rotor slip ring motor is a high-voltage three-phase asynchronous motor developed and manufactured by our company for many years. This type of motor adopts a box structure. The frame is made of steel plate welded box structure, which is light in weight and good in rigidity. There are window holes at the top and can be installed with a protective cover or cover. After removing the protective cover or cover, you can observe and touch the inside of the motor to facilitate maintenance and repair of the motor.

The high-voltage wound rotor slip ring motor motor stator adopts a slide-in external press-fit structure, the stator winding is made of F-class insulation material, and the ends are reliably fixed and bundled, and the inter-turn pulse voltage test is performed in the manufacturing process. The ground pressure test is carried out by vacuum pressure impregnation solventless paint process (VPI). Therefore, the motor has excellent insulation performance, good mechanical strength and strong moisture resistance. The wound rotor is treated with Class F insulation and vacuum pressure impregnation solventless paint process (VPI). The rotor weld head and the wiring are all insulated. The slip ring and stator winding of the motor are located in two isolated spaces to prevent toner from entering the winding. The bearing has two types of rolling bearing and sliding bearing. According to the motor power and speed, the basic form of protection is IP54. If the motor has a high degree of protection, the protection level of the bearing will also increase.

The main outlet box of the high voltage winding rotor slip ring motor is IP54 protection grade. It is usually installed on the right side of the motor (facing the motor shaft extension end), and can also be installed on the left side of the motor according to the order. The main outlet box is inside and outside. There is a separate ground terminal.

The power rating, installation dimensions and electrical performance of the high-voltage wound rotor slip ring three-phase asynchronous motor are in compliance with relevant IEC standards. The basic installation method of the motor is the horizontal bottom angle (IMB3), the working system is the continuous working system (S1), and the wound rotor is made of Class F insulation material.

The bearings of the high-voltage wound rotor slip ring motor have two types of rolling bearings and sliding bearings, depending on the power and speed of the motor. The rated frequency of the motor's power supply is 50Hz, the rated voltage is 6000V/10000V, and the basic type of protection is IP54. The motor slip ring housing can be protected to IP22 or IP23. Other voltage, frequency and degree of protection motors are also available upon request.

The high-voltage winding slip ring motor increases the setting and the bearing temperature measuring device. It can also add a heating device inside the motor. The shaft extension of the motor generally uses a tangential key, and the motor carbon brush is not a lifting structure.

High-voltage wound rotor slip ring motors can be used to drive a variety of different machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in the mining, machinery industry, petrochemical industry, power plants, etc. Used as a prime mover in a mining and mining enterprise. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.

Product Parameters

Center height range: H355 ~ 1000mm

Power range: 220kW ~ 10000kW

Number of poles: 2/4/6/8/10/12

Rated voltage: 3000V/6000V/6600V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).

Feature of Product

The high-voltage wound rotor slip ring motor can increase the large starting torque at a small starting current. The motor is suitable for applications where the capacity of the feeder line is insufficient to start the squirrel-cage rotor, the starting time is long, the starting is frequent, and the small-range speed regulation is required. This series of motors has the advantages of high efficiency, energy saving, low noise, low vibration, light weight, reliable performance, convenient installation and maintenance.

High-voltage Wound Rotor Slip Ring Motor

Customer Visit

The company insists on providing high-quality motor products and services to users, and has won high praise from many domestic and foreign customers. The company will receive many foreign merchants to visit our factory every year, and establish a good cooperative relationship through on-site inspection of our factory. Our company always welcomes customers to visit our factory.

High-voltage Wound Rotor Slip Ring Motor

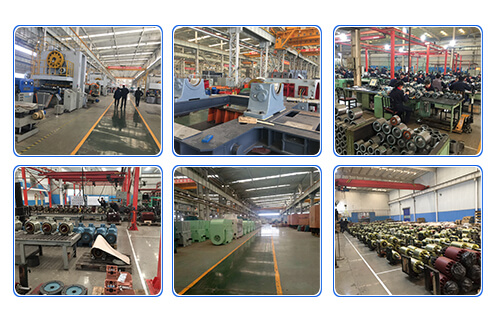

Factory Glimpse

Our company's motor manufacturing factory adheres to the concept of green, efficient and energy-saving production service, pays attention to the harmonious development of internal and external environment, builds environmentally friendly motor manufacturing enterprises, strictly implements motor standard process, and selects high-quality energy-saving materials to ensure the quality of motor products.

High-voltage Wound Rotor Slip Ring Motor

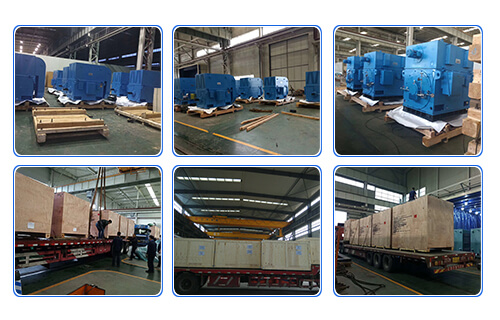

Packing and Shipping

1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.

2. The product packaging is protected by moisture, water plastic soft packaging

3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.

4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).

High-voltage Wound Rotor Slip Ring Motor

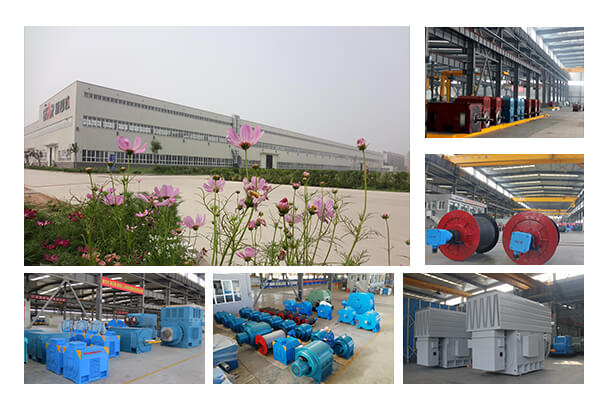

About Us

Shijiazhuang ZCL Electric Motor Technology Co., Ltd. is a company mainly engaged in the manufacture, research and development and sales of motor products. The company has many types of motor products, including IEC standard motors. It is a professional IEC motor manufacturer. Related motor products have passed the product certification in China, the United States, Canada, Europe, the Middle East and other regions, and the products are exported to all over the world. Companies adhere to the "focus on products, service" business philosophy, is committed to improving the quality of safe motor products and services for customers around the world.

High-voltage Wound Rotor Slip Ring Motor


More details, welcome to call us!

Q: What are the payment terms?

A: 30% T/T in advance, 70% before shipment

Q: What is your delivery time?

A: Different models with different time, 10-90 days after order confirmed.

Q: What is your MOQ?

A: It depends on model.

Q: Where is your loading port?

A: Shanghai or Tianjing Port, China.
