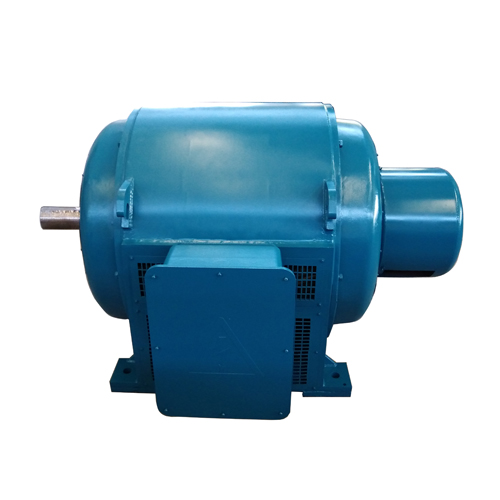

JR slip ring motor for ball mill


Brand: ZCL

Product Origin: China

Delivery Time: 40-75 days

Supply Capacity: 500 units/month


Product Description

JR slip ring motor for ball mill

The JR winding slip ring motor is designed for use with ball mills. This type of motor optimizes the product structure and is a new product that improves process design, maximizing the use of mill equipment.
The mechanical strength of the JR series ball mill motor winding is high, which improves the insulation level of the motor. The slip ring and carbon brush device of the motor are placed outside the end cover, which can effectively prevent the carbon dust from contaminating the coil, and at the same time, it is also easy to replace and repair. In the manufacturing process, the power frequency to ground test of the power pulse tester was carried out several times. The stator and rotor windings were made of Class F insulation varnish and cured by high temperature drying. The insulation performance of the motor was stable and reliable.

The JR ball mill special winding slip ring motor is an improved new product motor that meets the relevant international technical conditions.

JR ball mill motor adopts rotor string resistance full-voltage start-up, which has the advantages of small starting current, large starting torque, high efficiency, low noise, low vibration, good ventilation performance, reliable operation, convenient installation and maintenance.

JR ball mill motors are widely used in mining machinery, such as ball mills, crushers, etc. It can also drive a variety of different machines such as fans, compressors, pumps, cutting machines, transport machinery and other equipment.

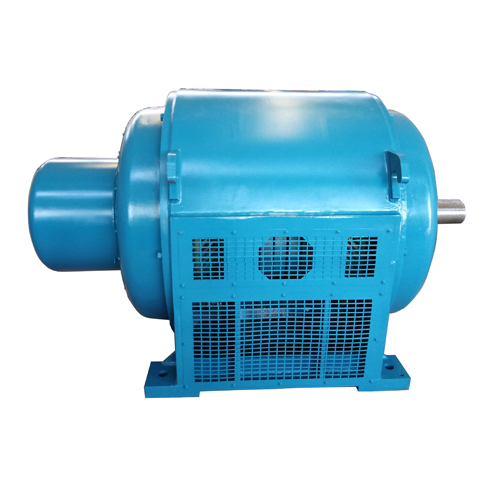

JR slip ring motor for ball mill

Motor power range: 95KW-780KW

Rated voltage: 380V/415V/660V/690V/3000V/33000V/6000V/10000V

Number of poles: 6/8/10/12

Rated frequency: 50Hz/60Hz

Protection level: IP23

Cooling method: IC01

Working system: S1

Insulation class: F

Wiring method: △

Installation method: B3 (horizontal installation)

Ambient temperature: ≥ -15 ° C and ≤ 40 ° C

The deviation of the rated voltage of the JR ball mill motor does not exceed 5%, the allowable deviation of the frequency is 1%, and the sum of the absolute values of the deviations does not exceed 5%.

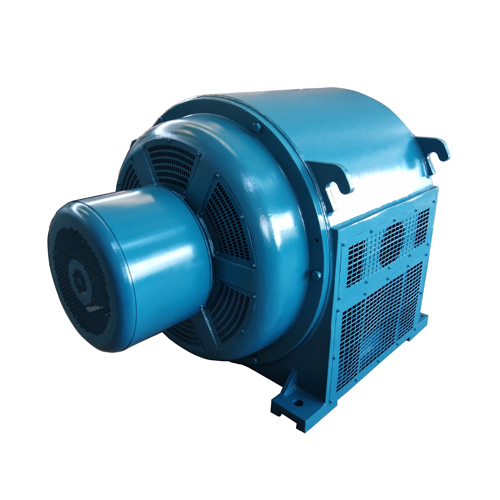

JR slip ring motor for ball mill

JR ball mill motor adopts rotor string resistance full-voltage start-up, which has the advantages of small starting current, large starting torque, high efficiency, low noise, low vibration, good ventilation performance, reliable operation and convenient installation and maintenance.

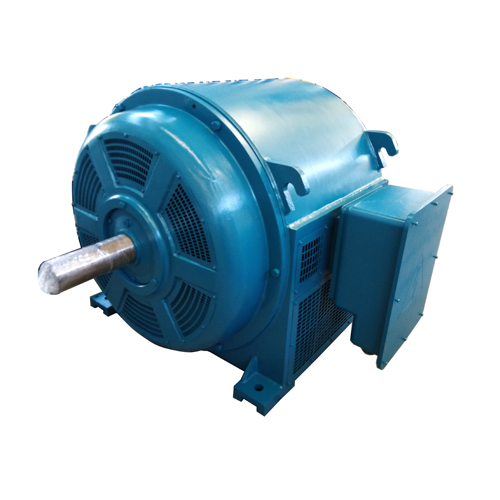

JR slip ring motor for ball mill

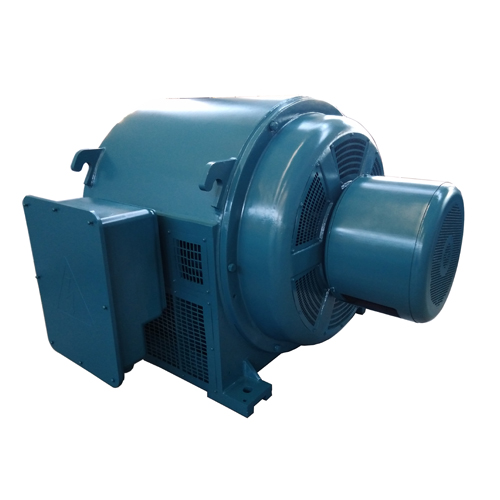

JR slip ring motor for ball mill

JR128-8-155KW-380V,JR138-8-245KW-380V,JR138-8-380KW-380V,JR158-8-380KW-6KV,JR1510-8-475KW-6KV,JR1512-8-570KW-6KV,JR1512-8-630KW-6KV

JR motor for ball mill
