Slip Ring Motor

Brand: ZCL

Product Origin: China

Delivery Time: 40-75 days

Supply Capacity: 300 units/month

Inquire Now Next Product

Product Description

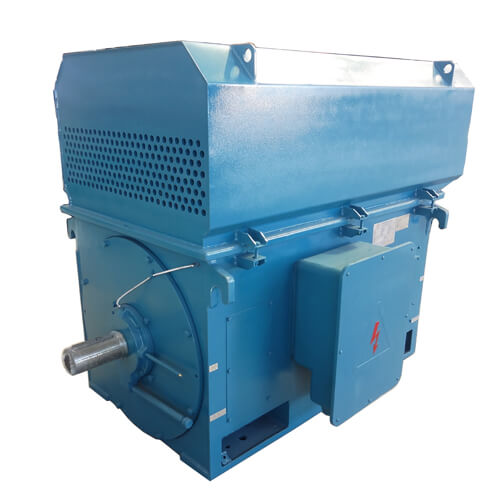

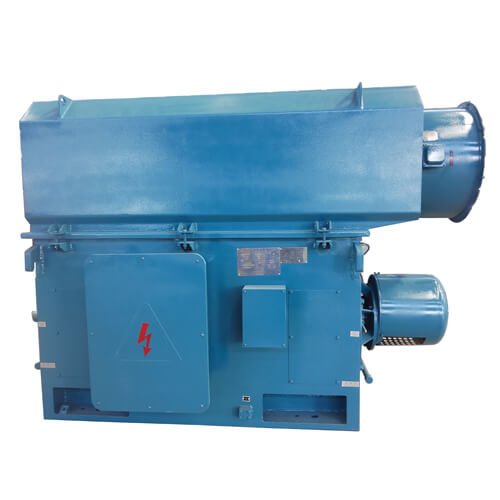

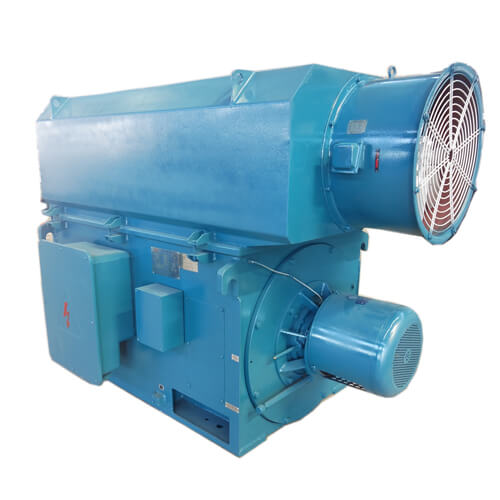

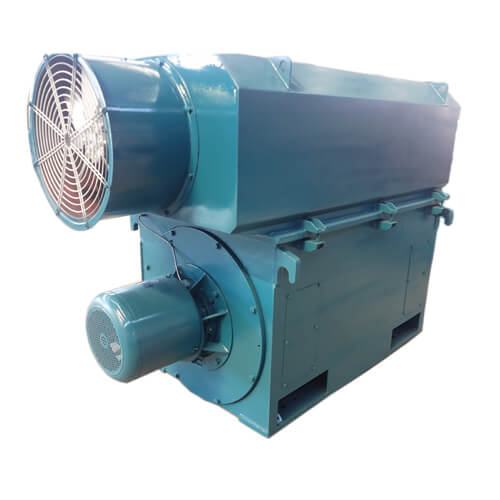

The slip ring motor is a wound high-voltage asynchronous motor (frame size 355-1000). This type of motor has a reasonable structure and advanced technology. It has the advantages of high efficiency, energy saving, low noise, low vibration, reliable operation, convenient installation and maintenance.

The high-voltage slip ring motor adopts a box structure, and the machine base is welded by steel plates, which is light in weight and good in rigidity. The closed air/air cooler is installed on the top of the motor, which is convenient for disassembly and assembly, which is beneficial to the maintenance and repair of the motor. The sliding ring cover has an observation window for observing the operation.

The stator of the high-voltage slip ring motor adopts an external press-fit structure. The stator windings are made of Class F insulation material, and the ends are reliably fixed and bundled. During the manufacturing process, multiple turns of the pulse voltage test and the ground pressure test are adopted. Foreign advanced vacuum pressure impregnation solventless paint equipment and process (VPI) treatment. Therefore, the insulation performance of the motor is excellent and reliable, the mechanical strength is good, and the moisture resistance is strong.

The high-voltage slip ring motor is a wound-type three-phase asynchronous motor. The power rating, installation dimensions and electrical performance of this type of motor are in compliance with relevant IEC standards. The basic installation method of the motor is the horizontal bottom angle (IMB3), the working system is the continuous working system (S1), and the wound rotor is made of Class F insulation material.

The bearings of high voltage slip ring motors are available in both rolling and plain bearings, depending on the motor power and speed. The rated frequency of the motor's power supply is 50Hz, the rated voltage is 6000V/10000V, and the basic type of protection is IP54. The motor slip ring housing can be protected to IP22 or IP23. Other voltage, frequency and degree of protection motors are also available upon request.

High-voltage slip ring motors can be used to drive a variety of different machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery industry, petrochemical industry, power plants and other industrial and mining Used as a prime mover in an enterprise. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.

Product Parameters

Center height range: H355 ~ 800mm

Power range: 185kW ~ 5000kW

Number of poles: 2/4/6/8/10/12/16

Rated voltage: 3000V/3300V/6000V/6600V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).

The high-voltage slip ring motor adopts a box structure, and the frame is welded by steel plate, which is light in weight and good in rigidity.

The high voltage slip ring motor is a closed-structure motor with an air-to-air cooler at the top. The stator winding adopts Class F heat-resistant insulating material, and the top binding is reliable, and the vacuum pressure immersion paint makes the motor have good insulation performance and mechanical strength.

The rotor of the high voltage slip ring motor uses a winding structure of a copper conductor. Bearings are available in both rolling and plain bearings, depending on the speed and power of the motor.

Feature of Product

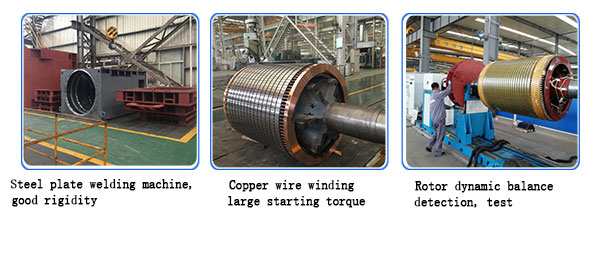

The high-voltage slip ring motor adopts a box structure, and the frame is welded by steel plate, which is light in weight and good in rigidity.

The rotor of the high voltage slip ring motor uses a winding structure of a copper conductor. Bearings are available in both rolling and plain bearings, depending on the speed and power of the motor.

Slip Ring Motor

Equipment Capacity

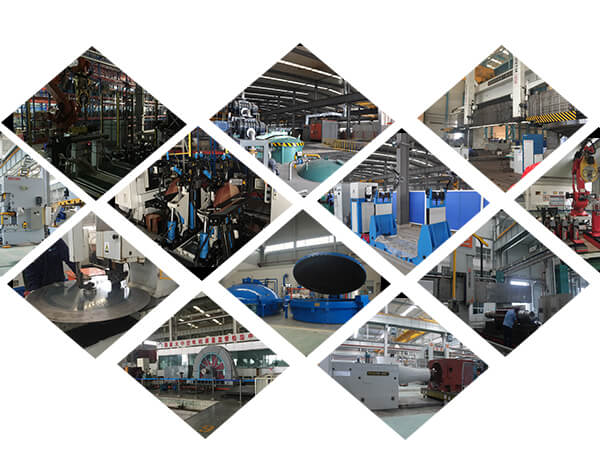

The company has large-scale laboratory, intelligent CNC winding machine, CNC rising machine, automatic wrapping machine, VPI high pressure vacuum immersion system, large-scale dipping paint drying furnace, 60 tons test platform, large vertical car, milling machine, grinding machine, Each type of dynamic balancing machine, double-feedback test and detection system with 6MW (12MW) motor and other motor production professional equipment more than 500 sets, sound mechanical equipment processing capacity, to lay a good foundation for customers to improve good quality motor products.
