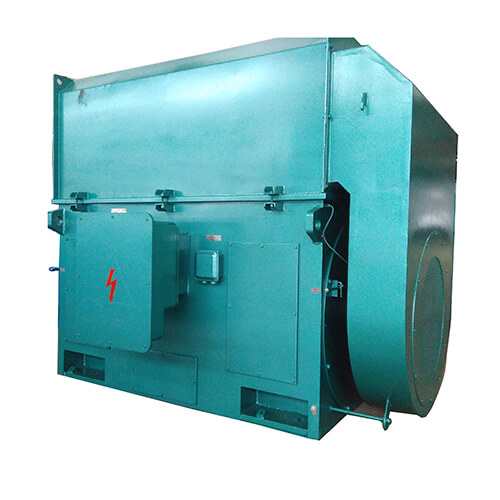

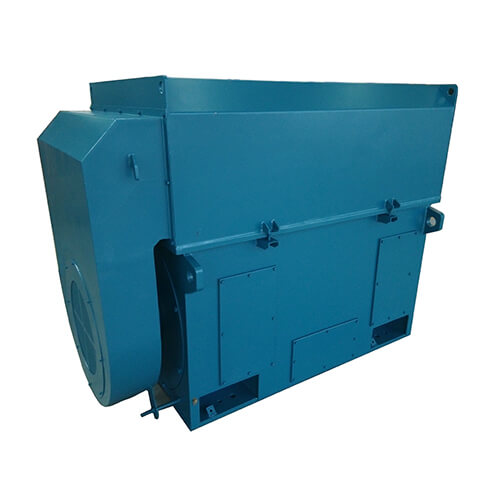

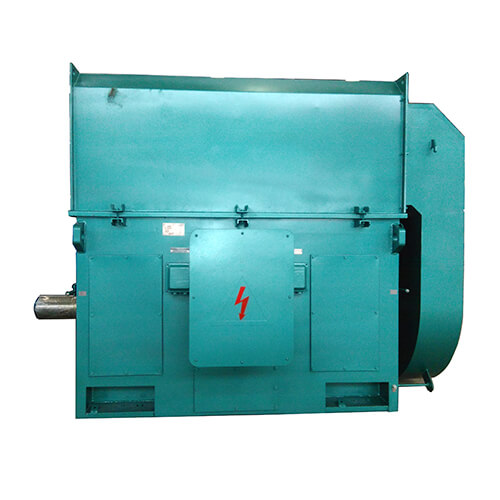

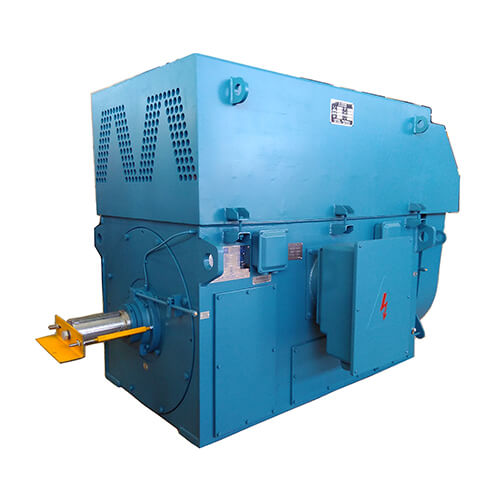

Squirrel Cage High Voltage Motor

Brand: ZCL

Product Origin: China

Delivery Time: 30-65 days

Supply Capacity: 1000 per Month


Product Description

YKK series squirrel cage high-voltage three-phase asynchronous motor is a cage-type asynchronous motor with closed air-to-air cooler. This series of motors is rated IP44 or IP54 and the cooling method is IC611.


YKK series high-voltage three-phase asynchronous motor is a cage asynchronous motor with closed air-to-air cooler. The base and end cover are made of steel plate. The box structure is adopted. The top cover can be opened to observe the internal condition of the motor. All components can be disassembled and assembled for convenient installation and maintenance.


YKK high-voltage squirrel cage motor has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance. Can be used to drive a variety of different machinery. Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used by coal mines, machinery industry, power plants and various industrial and mining enterprises.


The structure and installation form of YKK series high-voltage squirrel cage asynchronous motor is IMB3. The quota is continuous rating based on continuous working system (S1). The rated frequency of the motor is 50HZ, the rated voltage is 6KV/10KV, other voltage grades or special requirements are ordered. It can be agreed with the user.


YKK series squirrel cage high-voltage three-phase asynchronous motor (frame size 355-1000) is a motor product developed on the basis of years of manufacturing squirrel-cage motor technology, combined with long-term stable production of high-voltage three-phase asynchronous motor design and manufacturing experience.


YKK high-pressure squirrel cage motor adopts new technology, new materials, new technology, exquisite material selection, excellent manufacturing, beautiful appearance, high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance.


YKK high-voltage asynchronous motors comply with IEC international standards, and the mechanical dimensions and tolerances of various components comply with the corresponding Chinese and international standards. The protection level of this series of motors is IP54, IP55, etc. The cooling methods are IC611, IC616, etc. The installation method is IMB3, and the corresponding protection type, cooling method and installation method can also be made according to user requirements. This series of motors can also be made into wet tropical, dry tropical, outdoor and outdoor anti-corrosive and outdoor wet tropical.


YKK series squirrel cage high voltage motors can be used to drive various general machinery, such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery industry, petrochemical industry, power plants and other industrial and mining enterprises. Used as the prime mover.


 YKK squirrel cage motor adopts the international popular box structure. The frame and end cover are welded with steel plate. The weight is light and the rigidity is good. The top cover or cooler can be removed to observe or contact the inside of the motor, which is convenient for installation and maintenance. The junction box is a sealed structure, generally mounted on the right side of the motor (as viewed from the shaft extension end). It can also be mounted on the left side according to the user's needs. The inlet hole of the box faces downward, and there are separate grounding terminals inside and outside the box.


YKK squirrel cage high-voltage motor stator adopts three external pressure structure: hoisting, sliding in and pressing. The stator winding adopts F-class insulating material, adopts VPI vacuum pressure dipping technology, adopts magnetic slot wedge, and has reliable fixing and binding at the end. Measures, excellent insulation performance, high mechanical strength, strong moisture resistance, making the motor run safely and reliably.


The rotor of the motor adopts the squirrel cage structure, which is balanced by high-precision verification. The motor runs smoothly and the vibration is small. The motor is provided with a cylindrical shaft extension. It can also be made into a double shaft extension according to the user's needs. According to the motor power and speed, the bearing adopts two types of rolling bearing and sliding bearing. The rolling bearing is provided with non-stop injection and oil discharge device. Under the condition of continuous running of the motor, grease can be added regularly to maintain and maintain the motor. The sliding bearing is an end cap type spherical plain bearing, which adopts pressure oil lubrication or oil ring self-lubricating compound lubrication method, and measures for preventing shaft current generation are adopted at the same time. The motor adds a temperature measuring device to the bearings and windings to monitor the temperature rise during motor operation.


Product Parameters

Center height range: H355~1000mm

Power range: 185kW to 12000kW

Number of poles: 2/4/6/8/10/12/16

Rated voltage: 3000V/3300V/6000V/66000V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).


Feature of Product

YKK high-voltage squirrel cage motor has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance. Can be used to drive a variety of different machinery. Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used by coal mines, machinery industry, power plants and various industrial and mining enterprises.

Squirrel Cage High Voltage Motor

More Product

There are many types of motor products manufactured and sold by our company. The main products are high- and low-voltage three-phase asynchronous motors. The motor structure types include squirrel-cage type and winding type. Among them, high-voltage synchronous motors mainly support air compressors and mine ball mill equipment. use. We adhere to the service tenet of "focus on products, service with heart" and provide high-quality motor products to customers.

Squirrel Cage High Voltage Motor

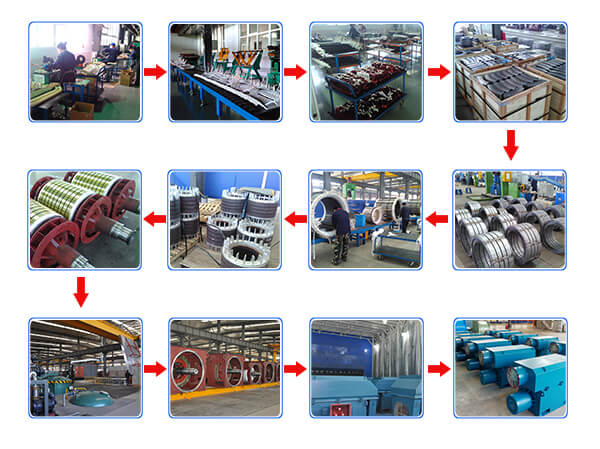

Main Process Flow of the Motor

Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying

Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance

Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage

Squirrel Cage High Voltage Motor

Product Use

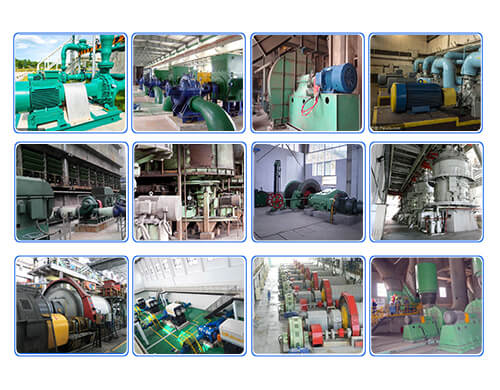

The motor products manufactured and sold by our company are used in many industries, such as electric power, mining, steel metallurgy, petrochemical, water conservancy, transportation, building materials and many other industries. The equipment for the motor is pump, machine tool, fan, mill, crusher, rolling mill, compressor and many other industrial equipment.

Squirrel Cage High Voltage Motor

Packing and Shipping

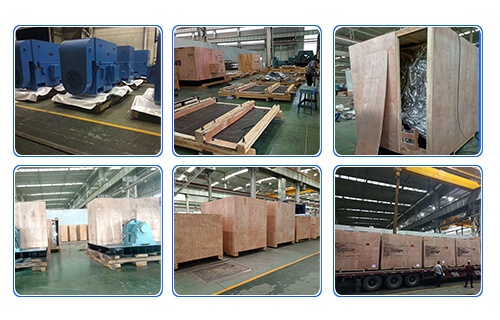

1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.

2. The product packaging is protected by moisture, water plastic soft packaging

3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.

4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).
