Y Large High Voltage Water Pump, Fan Squirrel Cage Motor

Brand: ZCL

Product Origin: China

Delivery Time: 45-90 Days

Supply Capacity: 100 units / month

Product Description

Product Description

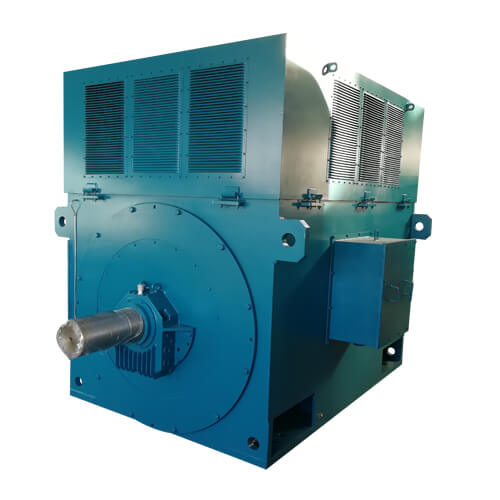

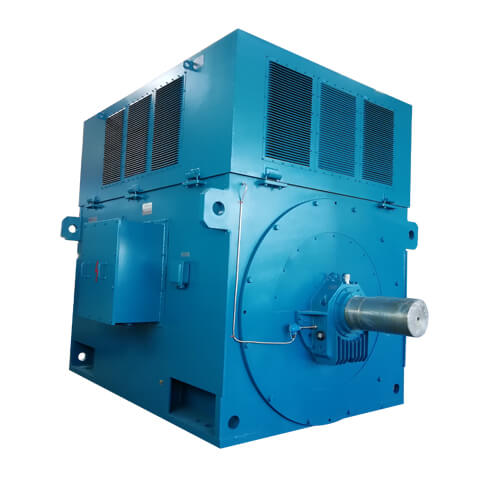

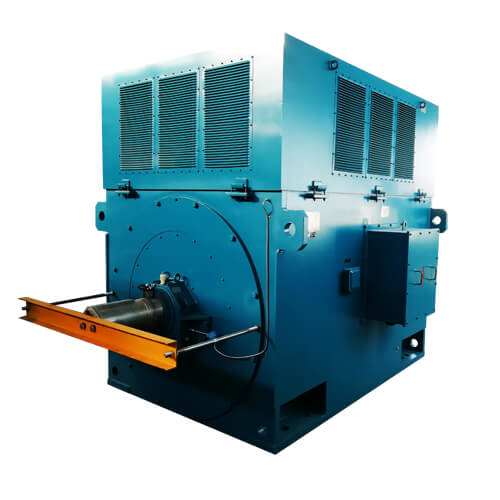

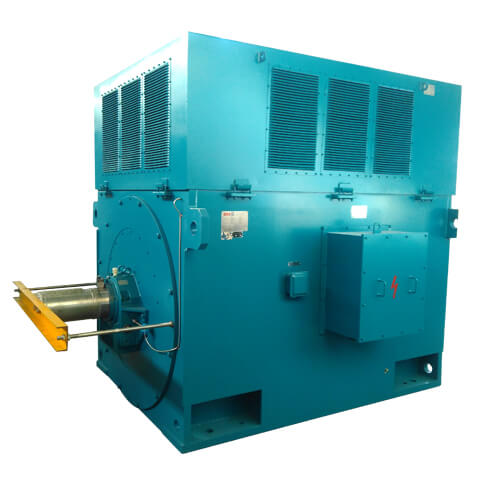

Y series high-voltage water pump and fan squirrel cage motor adopt box type structure, and the motor base is welded by steel plate, which is light in weight and good in rigidity. The motor has the advantages of high efficiency, energy saving, low noise, low vibration, reliable operation, convenient installation and maintenance.

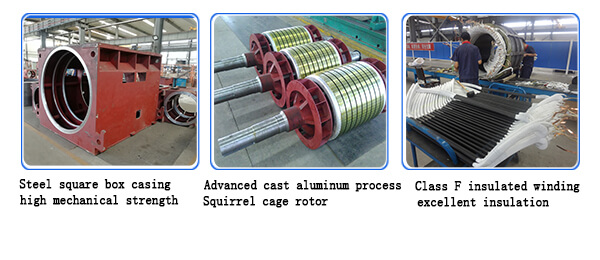

Y series high-voltage water pump and fan squirrel-cage motor stator adopts external press-fit structure. The stator winding adopts F-class insulation material, and the end has reliable fixing and ligating. During the manufacturing process, it has undergone multiple inter-turn pulse voltage test and resistance to ground. Pressure test and treatment with German advanced vacuum pressure impregnation solventless paint equipment and process (VPI). Therefore, the insulation performance of the motor is excellent and reliable, the mechanical strength is good, and the moisture resistance is strong.


Y series large-scale high-voltage motor squirrel-cage rotor adopts two structures of cast aluminum and copper strip. It is manufactured by advanced and reliable cast aluminum process or welding process, and has passed dynamic balance check to ensure stable and reliable motor operation.


Y series high voltage squirrel cage motor bearings are available in both rolling and plain bearings, depending on the motor power and speed. The main motor junction box is usually mounted on the right side of the motor (as viewed from the shaft extension), or it can be mounted on the left side of the motor as required. There is a separate ground terminal in the main junction box.


Y series high voltage water pump and fan squirrel cage motor (frame size 355-1000) is a product developed according to the production technology of high voltage motor for many years, with reasonable structure and advanced technology. It has the advantages of high efficiency, energy saving, low noise, low vibration, reliable operation, convenient installation and maintenance.


The power level, installation size and electrical performance of Y series high voltage water pump and fan squirrel cage motor are in line with national IEC standards. The motor is used in an environment where the altitude does not exceed 1000 m and the ambient air temperature does not exceed 40 ° C and there is no serious dust, corrosive or explosive gas. Motors for wet and tropical regions can also be produced on request.


Y series large high voltage squirrel cage motor has a power supply rated frequency of 50Hz and a rated voltage of 10000V. It is also possible to manufacture motors with 60 Hz or other voltages as required.


The basic installation method of Y series high pressure fan and water pump motor is horizontal bottom angle (IMB3), and the working system is continuous working system (S1).


Y series high voltage squirrel cage asynchronous motor can be used to drive various general machinery such as compressors, pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, in mining, machinery industry, petrochemical industry, power plants and other industrial and mining. Used as the prime mover in the enterprise. The motor used to drive the blower, coal mill, rolling mill and winch should indicate the purpose and technical requirements when ordering, and adopt special design to ensure reliable operation.


Product Parameters

Center high range: H450-H1000

Power range: 250KW-10000KW

Voltage: 10KV/11KV

Number of poles: 2/4/6/8/10/12

Rated frequency: 50HZ/60HZ

Protection level: IP23

Cooling method: IC01

Insulation class: Class F

Working system: S1

Wiring method: Y

This type of motor is suitable for use in environments where the ambient temperature is -15~+40 degrees Celsius, the altitude is not more than 1000m, indoor or outdoor, and no hazardous gas environment.


Feature of Product

Y series high-voltage squirrel cage motor has the characteristics of good heat dissipation, compact structure, light weight, good port, high efficiency, simple installation and convenient maintenance. This type of motor has a high degree of generalization, and can be widely used to replace J and JS series motors. In the case of the same motor power, small-seat production is realized.

Y Large High Voltage Water Pump, Fan Squirrel Cage Motor

Packing and Shipping

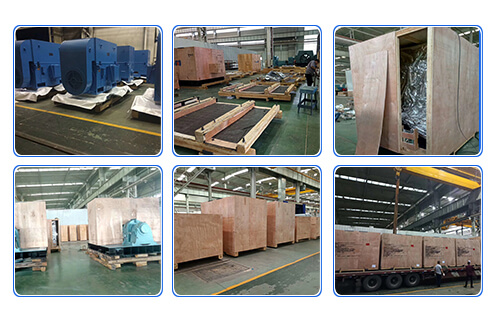

1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.

2, the product packaging is protected by moisture, water plastic soft packaging

3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.

4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).

Y Large High Voltage Water Pump, Fan Squirrel Cage Motor

Product Use

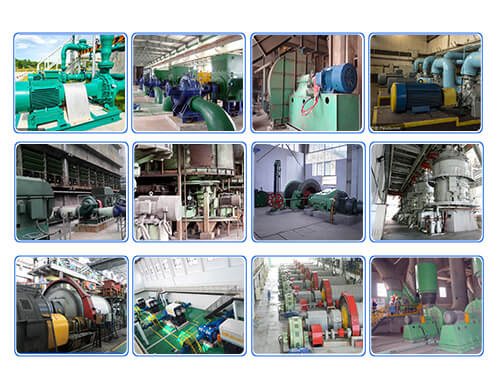

The motor products manufactured and sold by our company are used in many industries, such as electric power, mining, steel metallurgy, petrochemical, water conservancy, transportation, building materials and many other industries. The equipment for the motor is pump, machine tool, fan, mill, crusher, rolling mill, compressor and many other industrial equipment.

Y Large High Voltage Water Pump, Fan Squirrel Cage Motor

Equipment Capacity

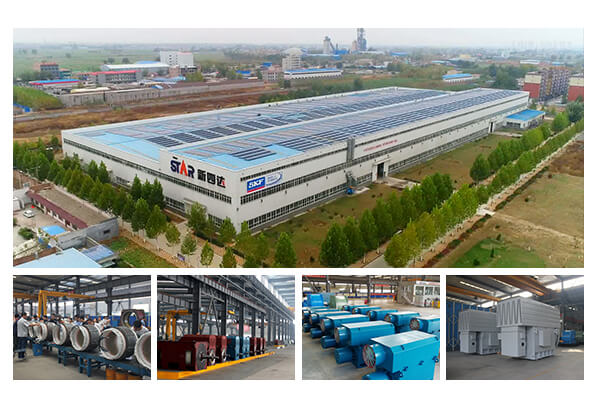

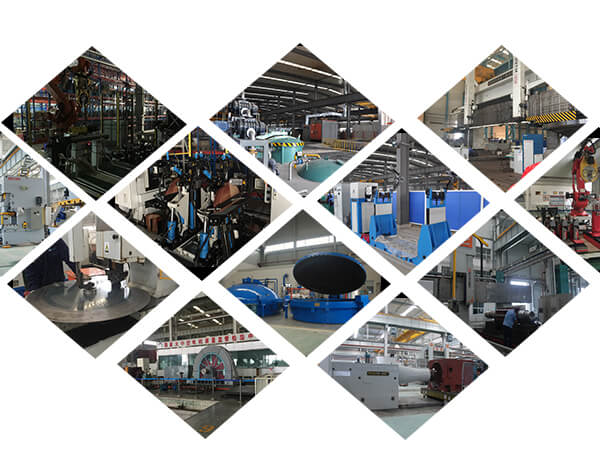

The company has large-scale laboratory, intelligent CNC winding machine, CNC rising machine, automatic wrapping machine, VPI high pressure vacuum immersion system, large-scale dipping paint drying furnace, 60 tons test platform, large vertical car, milling machine, grinding machine, Each type of dynamic balancing machine, double-feedback test and detection system with 6MW (12MW) motor and other motor production professional equipment more than 500 sets, sound mechanical equipment processing capacity, to lay a good foundation for customers to improve good quality motor products.

Y Large High Voltage Water Pump, Fan Squirrel Cage Motor

About Us

Shijiazhuang ZCL Electric Motor Technology Co., Ltd. is a company mainly engaged in the manufacture, research and development and sales of motor products. The company has many types of motor products, including IEC standard motors. It is a professional IEC motor manufacturer. Related motor products have passed the product certification in China, the United States, Canada, Europe, the Middle East and other regions, and the products are exported to all over the world. Companies adhere to the "focus on products, service" business philosophy, is committed to improving the quality of safe motor products and services for customers around the world.
